ID 442426.04 220WE KEEP THINGS MOVING
Motor
10
Manual SD6

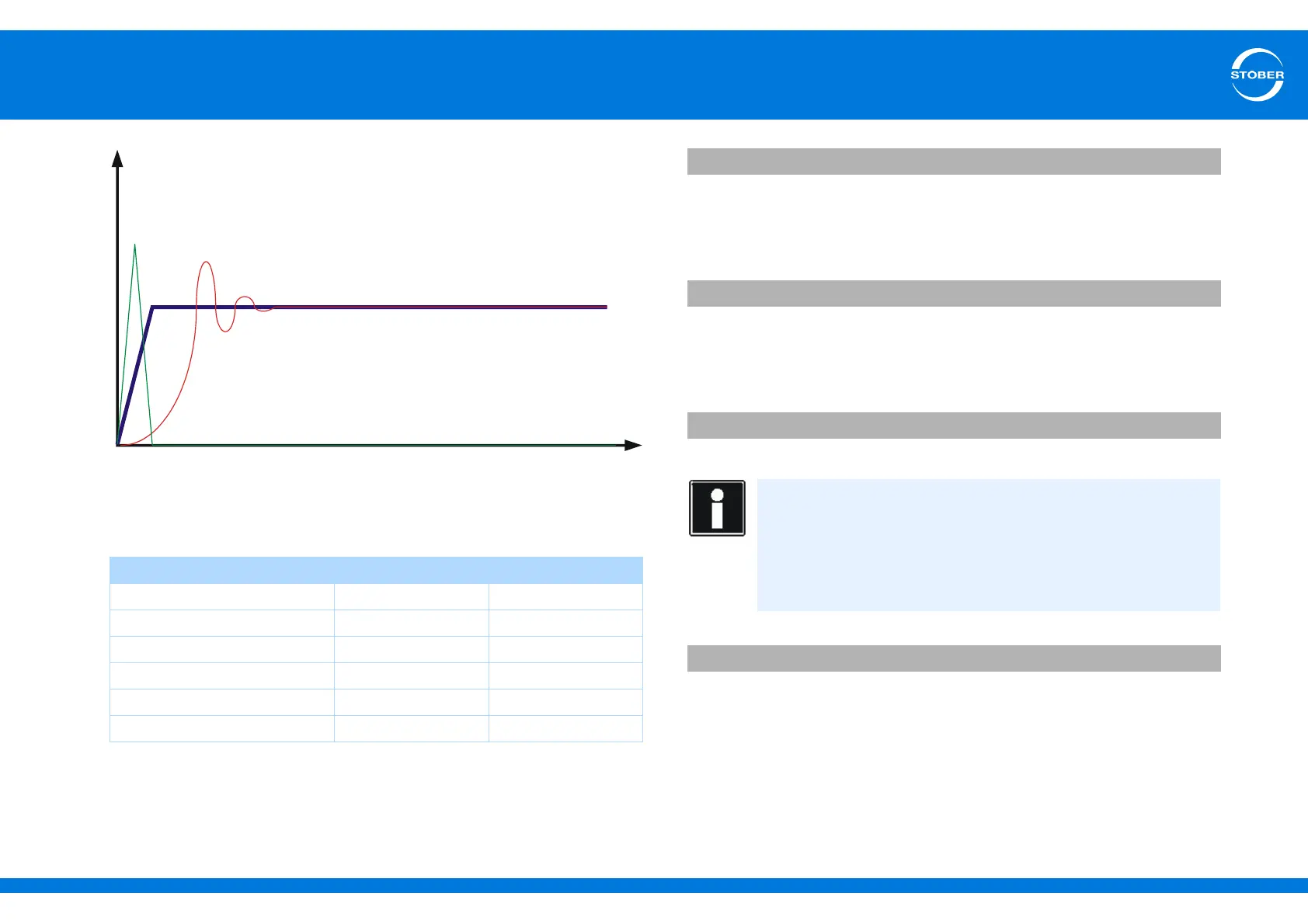

The nominal motor output (B11) can be used to determine an approximate
value for B48. The approximate value is calculated according to the following
formula: B48 = a * B11 + b
The coefficients a and b can be taken from the following table.
Inductance R
U-V
of the motor winding in mH. This value should only be
parameterized for third-party motors. The value can be autotuned with action
B41 autotuning.
Stator resistance R
U-V
of the motor winding in ohms. Processing with this
parameter is only possible for third-party motors. The value can be autotuned
with action B41 autotuning.
Leaked inductance as a part of overall inductance "Ls" of the motor.
The parameter indicates the degree to which the motor is magnetically
saturated at the nominal point. The parameter is important for the control
accuracy of control modes 2:ASM - vector control and 3:ASM - Sensorless
vector control in the field weakening range.
Nominal motor output a b
Up to 0.55 kW -43262 31291
< 2.2 kW -767,2 2202,1
< 4 kW -46,356 683,49
< 7.5 kW -15,886 225,13
< 9.2 kW -9,2799 163,09
Greater than 15 W -0,8864 34,159
E07 n-post-ramp
E91 n-motor E15 n-motor-encoder B48 or ( too small)
E91 n-motor E15 n-motor-encoder B48 or ( too large)
B52 stator inductance version 0
B53 stator winding resistance version 0
B54 leakage factor version 0
Information
The default value is adequate for most motors and applications.
Adjustments are only necessary in some circumstances when
connecting a third-party motor. In these cases the value can be
autotuned with action B41 autotuning. However, this adjustment
should not be performed until you have consulted with STOBER.
B55 magnetic saturation coefficient version 0
