Xerox WorkCentre 6605 Service Manual

Error Troubleshooting
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
2-13

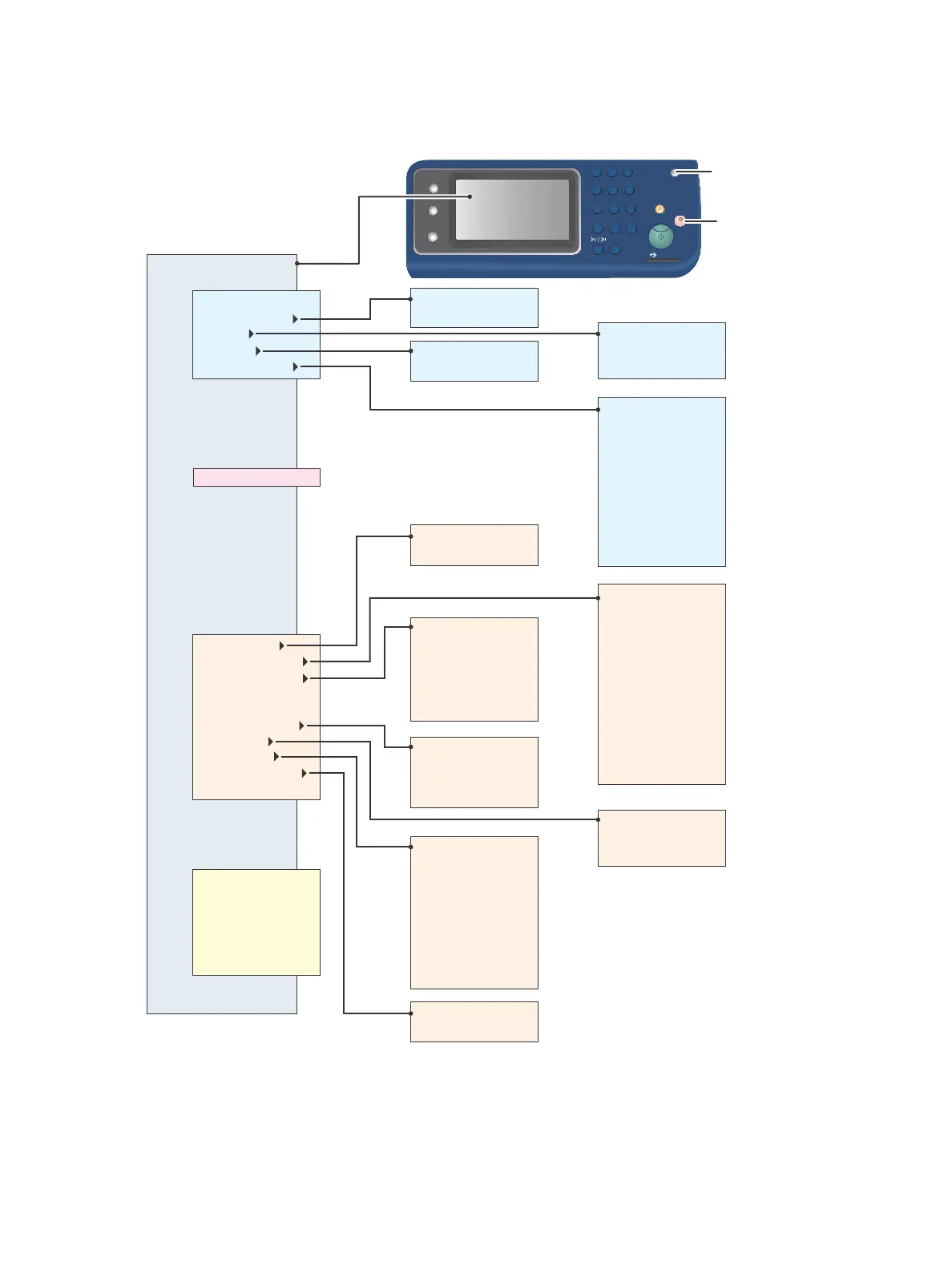

WorkCentre 6605 Fax/Scanner Diag Menu Map
1
4
7
*
C
0 #
8
9
5 6
2 3
ABC
Services
Home
Job Status
DEF
GHI
PQRS TUV
Workcentre 6605
WXYZ
CA
!
JKL MNO
Information
Scanner Maintenance
Board Test
Parameter
BackUp Data
Complete
All Test
Fax Memory Test
I/F Test
ASIC Test
Relay/Signal Test
White Balance
Shading Parameter
Registration Param.
Auto Registration
Sensor Parameter
Vertical Scan Mag.
Test Pattern
IIT I/O Check
Scan Counter Clear
Carriage Drive_100
Scan Counter
All Clear
User Clear
System Clear
User&System Clear
System Data Init
Document Clear
Counter Clear (FB)
Counter Clear (DADF)
Auto Adjust (FB)
Auto Adjust (DADF)
Fax Flash W/R Test
SRAM W/R Test
Relay Test
Hook Test
Single Tone Test
DTMF
Send
Dial Pulse Send
Ring Back Tone
Data Send
Line Voltage
Line Current
Home Pos Sensor
Tray Sensor
Feed Sensor
DADF Cover Sensor
DADF Duplex Sensor
Lamp..
FB Motor
DADF Motor
DADF Solenoid
Coeff FB RED
Coeff FB GREEN
Coeff FB BLUE
Coeff FB GRAY
Coeff DADF RED
Coeff DADF GREEN
Coeff DADF BLUE
Coeff DADF GRAY
Target RED
Target GREEN
Target BLUE
Target GRAY
Regi FB Lead
Regi FB Side
Regi DADF Lead(Front)
Regi DADF Side(Front)
Regi DADF Lead(Back)
Regi DADF Side(Back)
Pattern No.
Pt07:Step Cycle
Pt08:Step Cycle
Mag FB COLOR
Mag FB GRAY
Mag DADF COLOR
Mag DADF GRAY
s6600-289
Fax Card I/F Test
AFE Serial I/F Test
IIT I/F Test
ASIC IJAC Test
ASIC JBIG Test
Fax/Scanner Diag
Power Saver On/Off
Cancel
