Xerox WorkCentre 6605 Service Manual

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-25

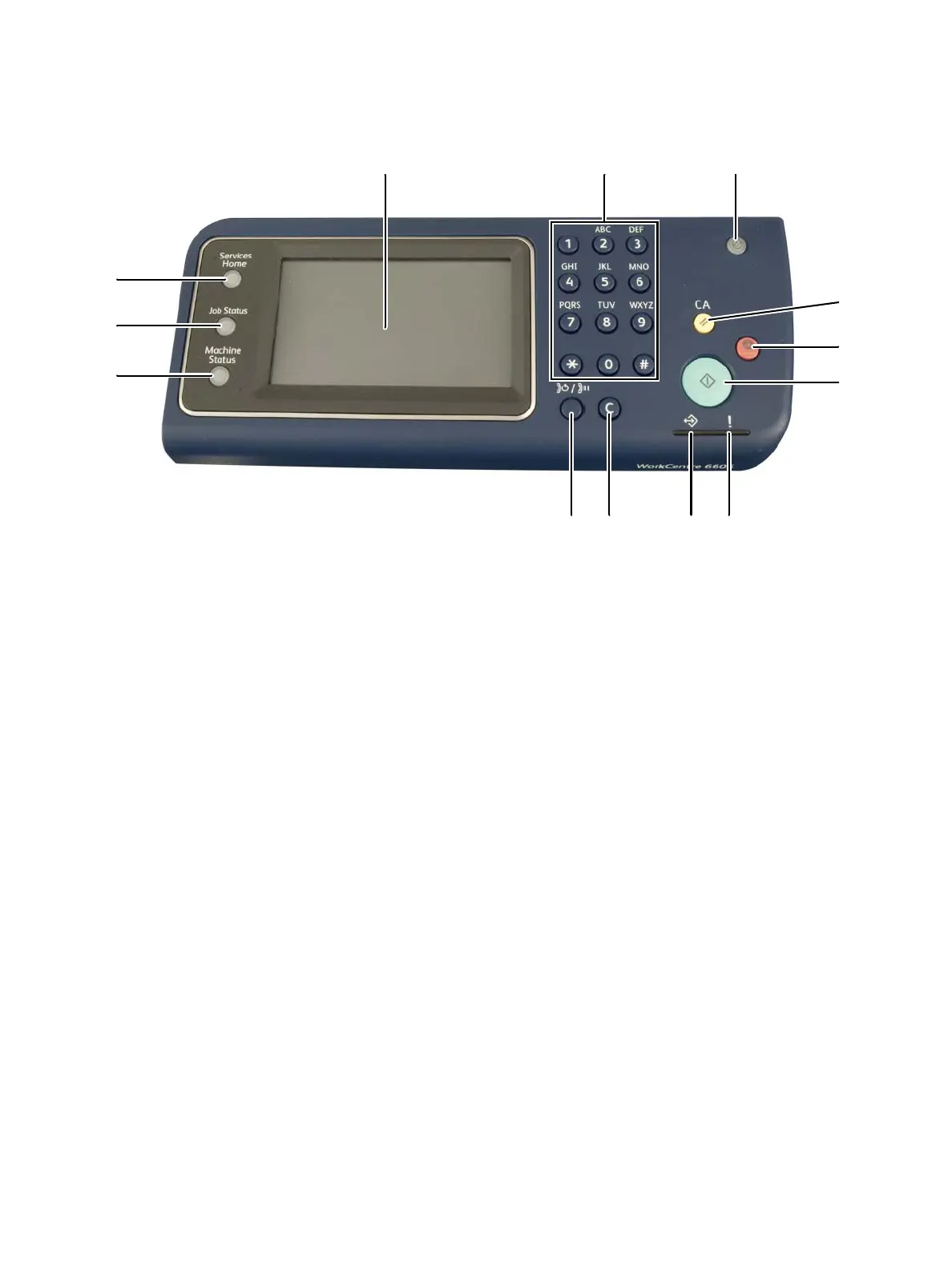

WorkCentre 6605 Control Panel Button Descriptions
1. Machine Status Switches the display to the System menus.
2. Job Status Displays the active jobs, Secure Print Jobs, and Secure Fax Jobs available in Job
Status on the touch screen.
3. Services Home Invokes the Services home menu for access to printer features, such as copy,
scan, and fax.
4. Touch screen Display Displays information and provides access to printer functions.
5. Alphanumeric Keypad Enters alphanumeric information such as phone numbers, quantities, text.
6. Power Saver Enters and exits low-power mode.
7. Clear All Clears previous and changed settings for the current selection.
8. Stop Cancels the current job.
9. Start Starts the selected copy, scan, fax, or Print From job, such as Print from USB
10. Error indicator • Lights red to indicate an error condition or warning that requires attention.
• Blinks red when an error occurs that requires technical support.
11. Ready indicator • Lights green when the printer is ready to receive data.
• Blinks green when the printer is busy receiving data.
12. Clear Clears a number field or clears the last number of a numeric entry.
13. Redial/Pause Recalls the last fax number used or inserts pauses in fax numbers.
1
2
3
56
7
8
9
10111213
4

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
