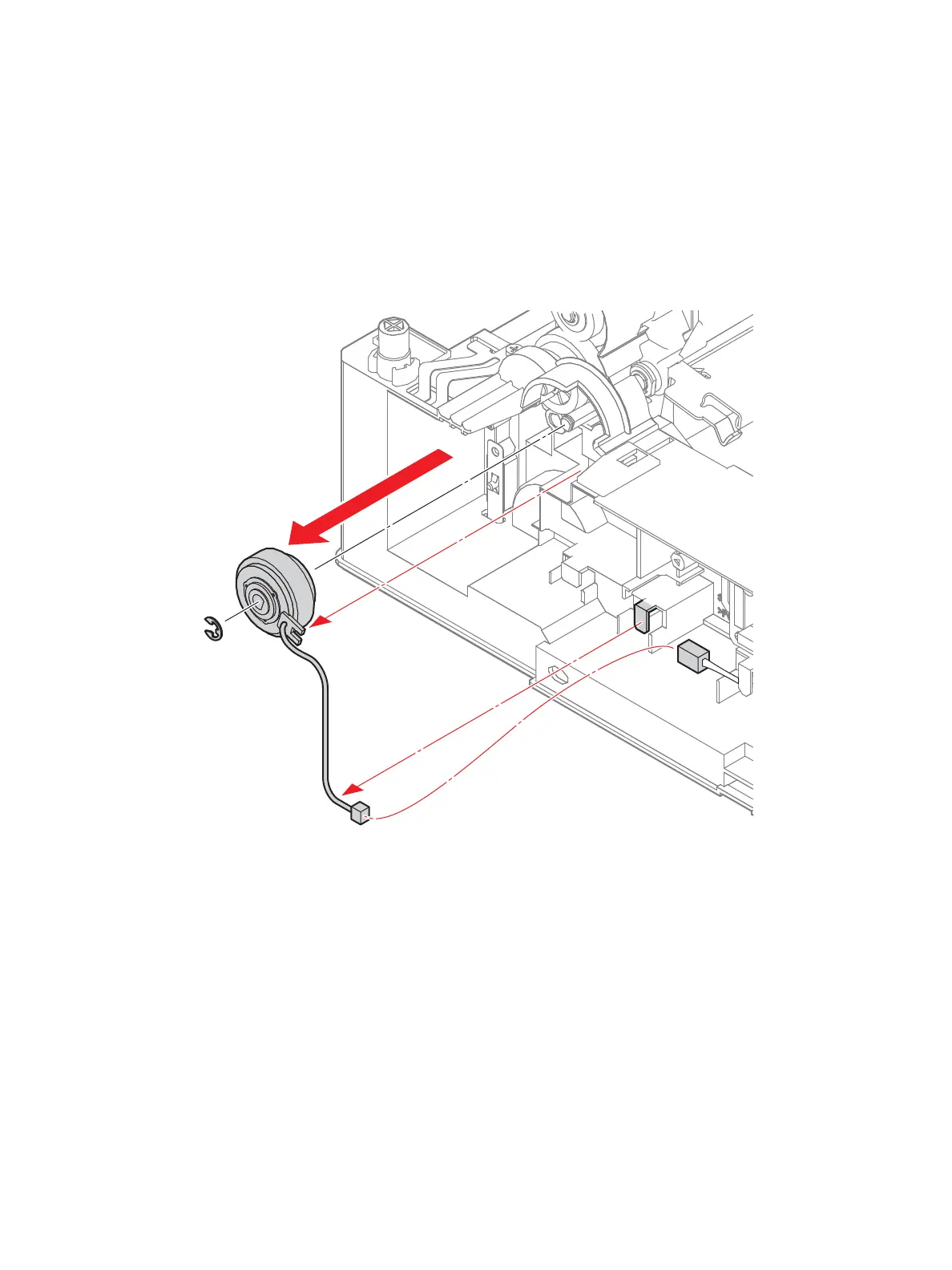

550 Option Feed Clutch Assembly
PL10.1.8
1. Remove the 550 Option Drive Assembly. (page 4-57)
2. Unplug connector P/J4213 on the harness coming out of the 550 Option Feed Clutch Assembly
(PL10.1.8), and then release the harness from the harness guide.
3. Remove the E-ring holding the the 550 Option Feed Clutch Assembly, and then pull the 550
Option Feed Clutch Assembly off of the shaft.
Replacement Note: When installing the 550 Option Feed Clutch Assembly, align the recess on the
550 Option Feed Clutch Assembly with the lug on the frame.
s6600-173
