Xerox WorkCentre 6605 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-69

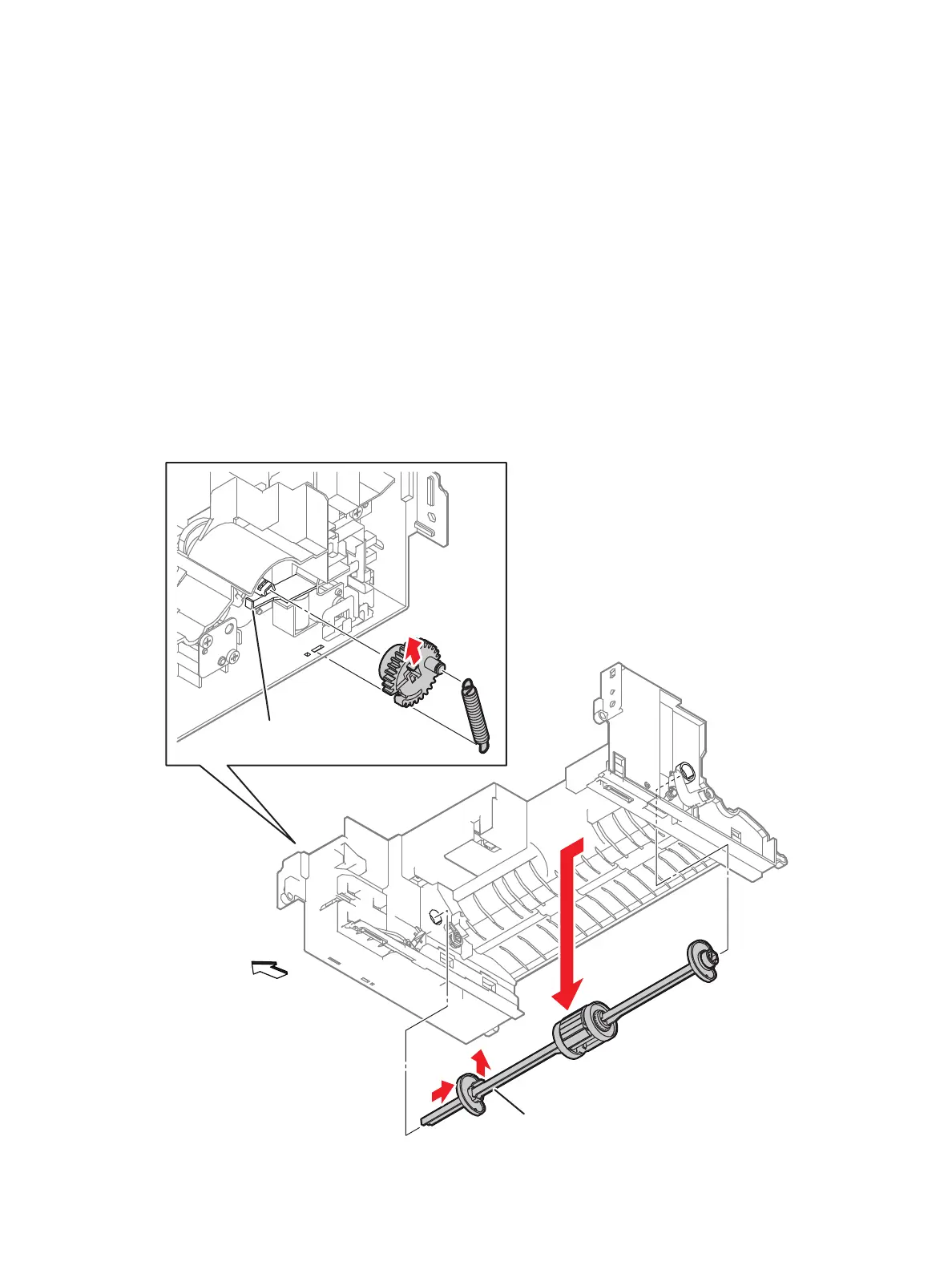

Roller Kit Assembly
(PL13.2.98)
1. Remove the Bypass Tray Frame Assembly (page 4-65).
2. Remove the Feed Spring (PL13.2.7).
3. Release the hook holding the Bypass Tray Feed Gear (PL13.2.8) and remove the gear from the
Bypass Tray Feed Shaft (PL13.2.14).
4. Release the hook holding the Left Bypass Tray Cam (PL13.2.11), and slide the cam to the right.
5. Slide the Roller Kit Assembly (PL13.2.98) to the left to release the right end of the shaft, and then
swing the right end of the shaft toward the front while shifting the shaft to the right in order to
free the left end.
Replacement Note: Make sure that the solenoid actuator is below the shaft when reinstalling the
Roller Kit Assembly.
s6600-131
Front
Solenoid Actuator
L Bypass Tray Cam

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
