Xerox WorkCentre 6605 Service Manual

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-31
Transfer/Fusing/Exit

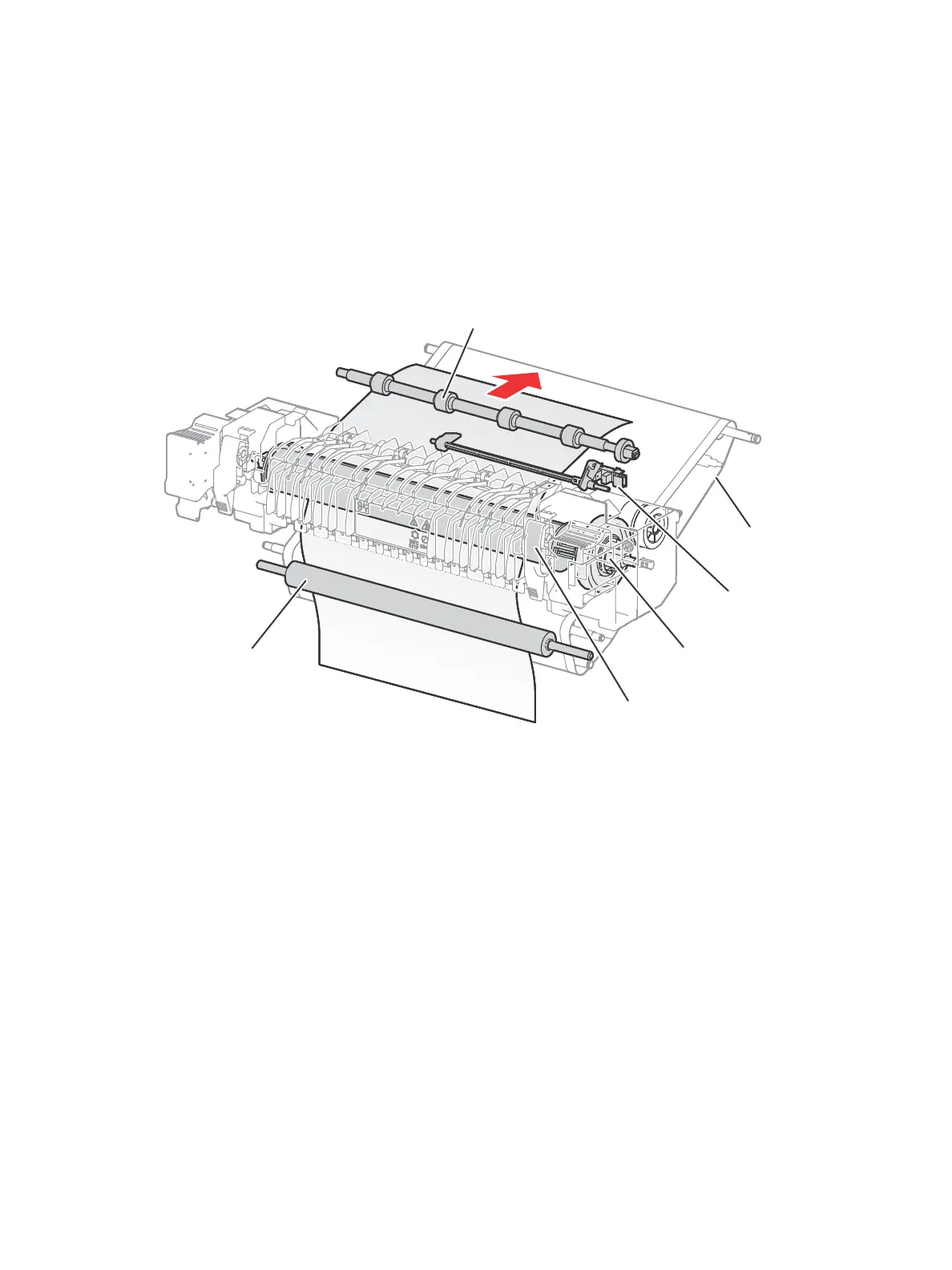

On the sheet passed through the registration section, the toner image on the intermediate transfer belt
is transferred by the intermediate transfer belt and the Transfer Roller rotated by the drive of the
Developer Motor. Then, the sheet is fed to the exit section while its toner image is being fused by the
Heat Roller that rotated by the drive of the Main Motor. Also, the drive of the Main Motor is
transmitted to the Exit Clutch 1, and the Exit Roller is rotated in the sheet exit direction, and the print
completed sheet is ejected from the printer. The completion of the sheet exit is detected by the Exit
Sensor.
s6600-266
Exit Roller
Transfer Belt
Assembly
Exit Sensor
Heat Roller
Pressure Roller
Transfer Roller 2
