Bypass Tray Frame Assembly
PL13.2.1

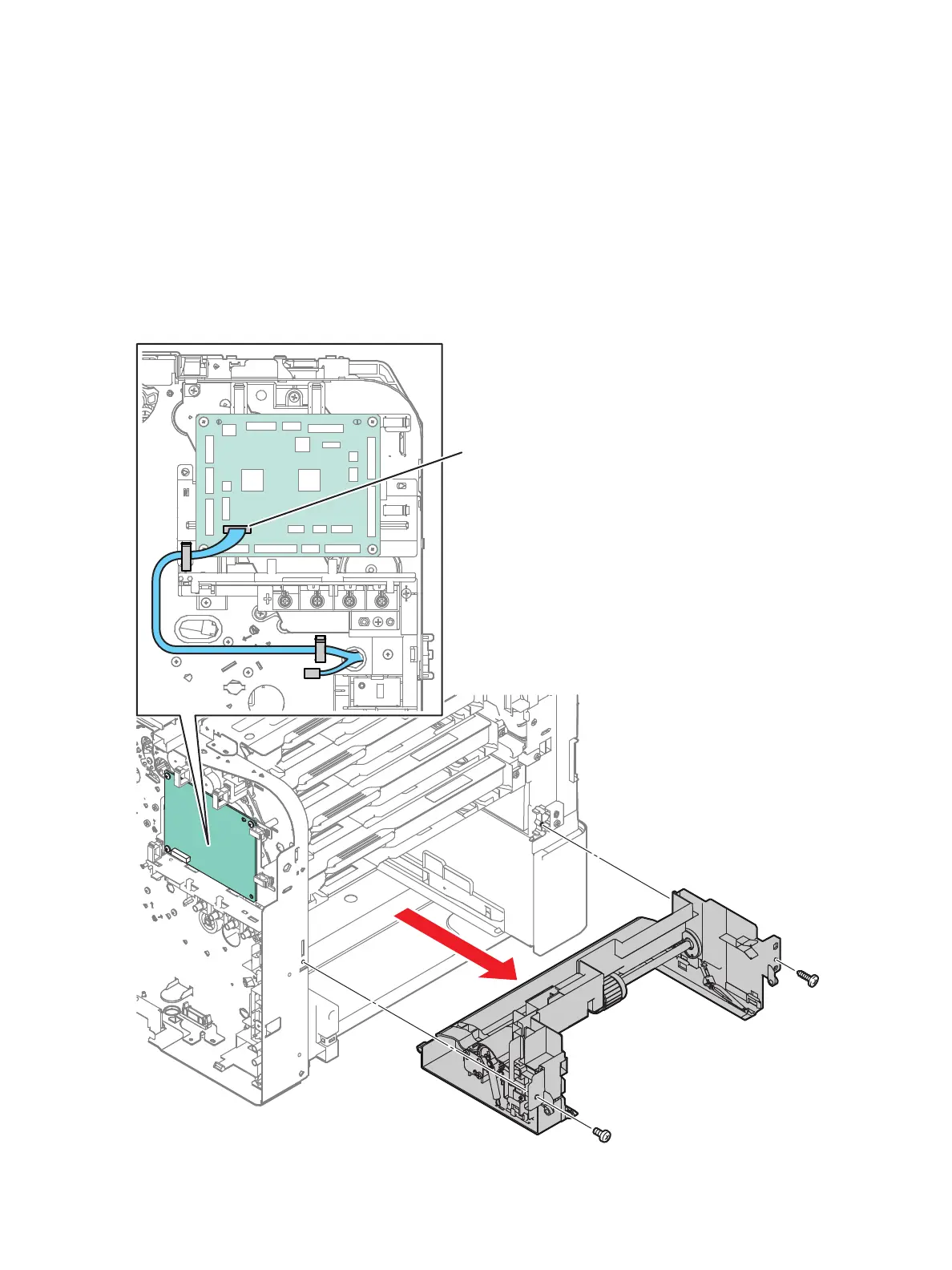

1. Remove the Bypass Tray Assembly. (page 4-71)
2. Remove the Drive Assembly. (SFP page 4-11; MFP page 4-16)
3. Unplug connector P/J21 from the MCU Board , and release the harness from the clamps.
4. Remove the two screws (silver, 6mm) (silver, tapping, 8mm) that attach the Bypass Tray Frame
Assembly (PL13.2.1).
5. Remove the Bypass Tray Frame Assembly while guiding the harness through the hole in the frame.
To Next Page
