Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-37
Toner Cartridges Y, M, C, K
PL5.1.8-11
Notes:
• The illustration shows the SFP, but the procedure is the same for the MFP.
• Since the removal procedure is the same for all the toner cartridges, this procedure
describes removal of Toner Cartridge Y only.
• When removing a Toner Cartridge, be careful not to spill toner.

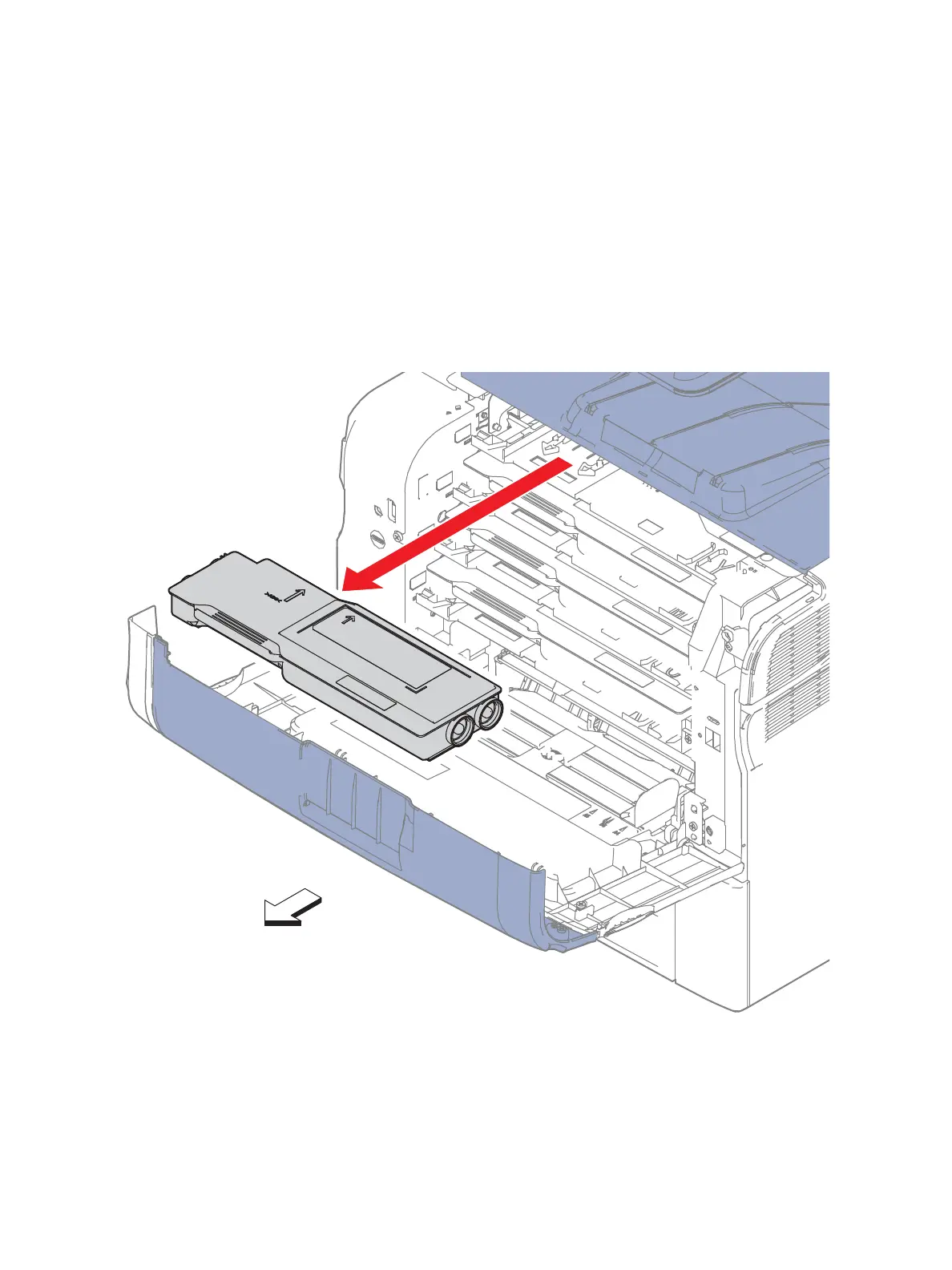

1. Open the Front Door Assembly (PL19.1.34).
2. Pull out the Toner Cartridge Y to the front by the handle.
