Cleaner Assembly / Cleaner Assembly Base
PL8.1.6 / PL8.1.9

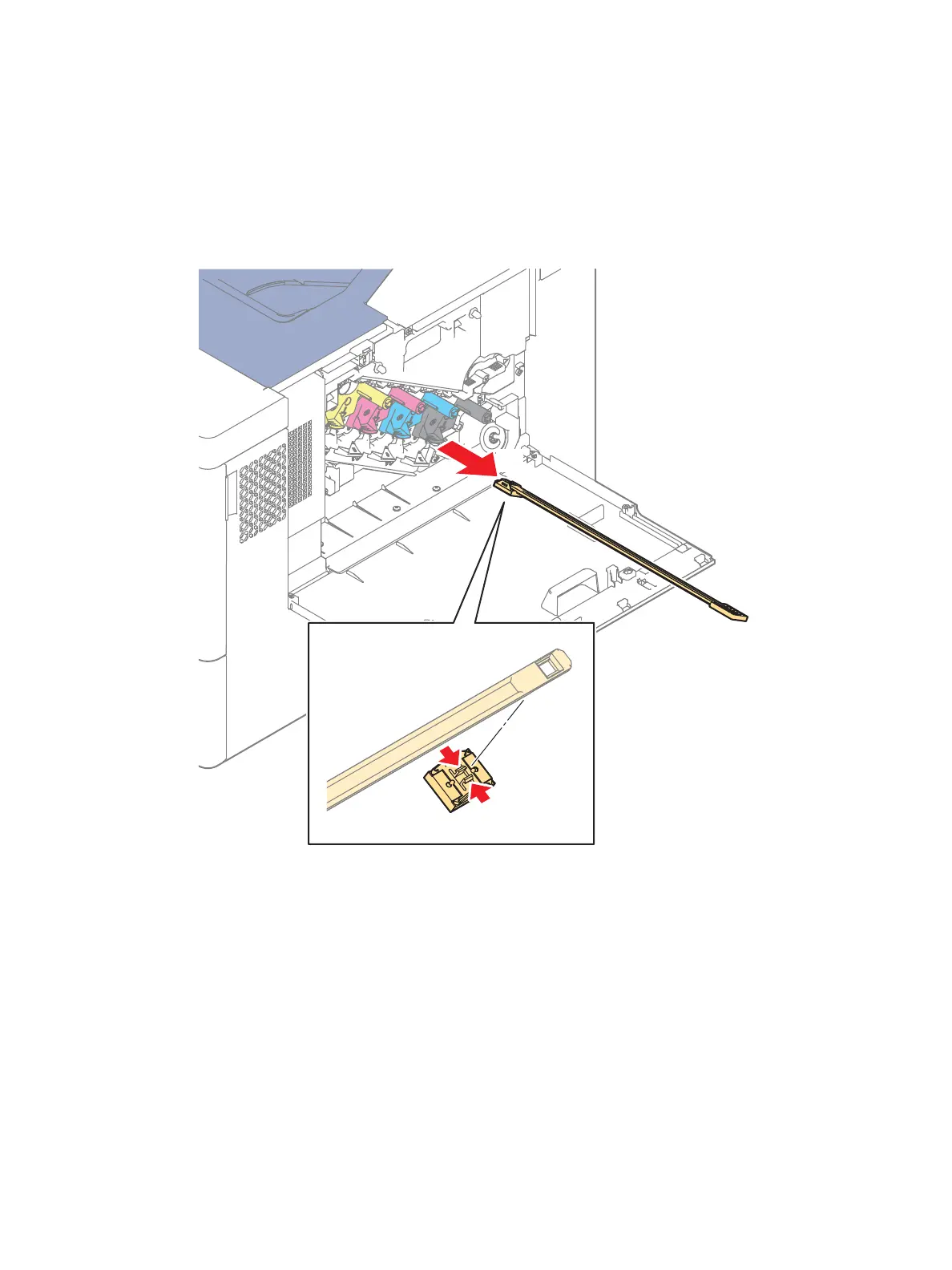

1. Remove the Waste Cartridge. (page 4-50)
2. Pull out the Cleaner Assembly (PL8.1.6).
3. Release the hook holding the Cleaner Assembly Base (PL8.1.9) and remove it.
