Xerox WorkCentre 6605 Service Manual

Wiring
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
7-26

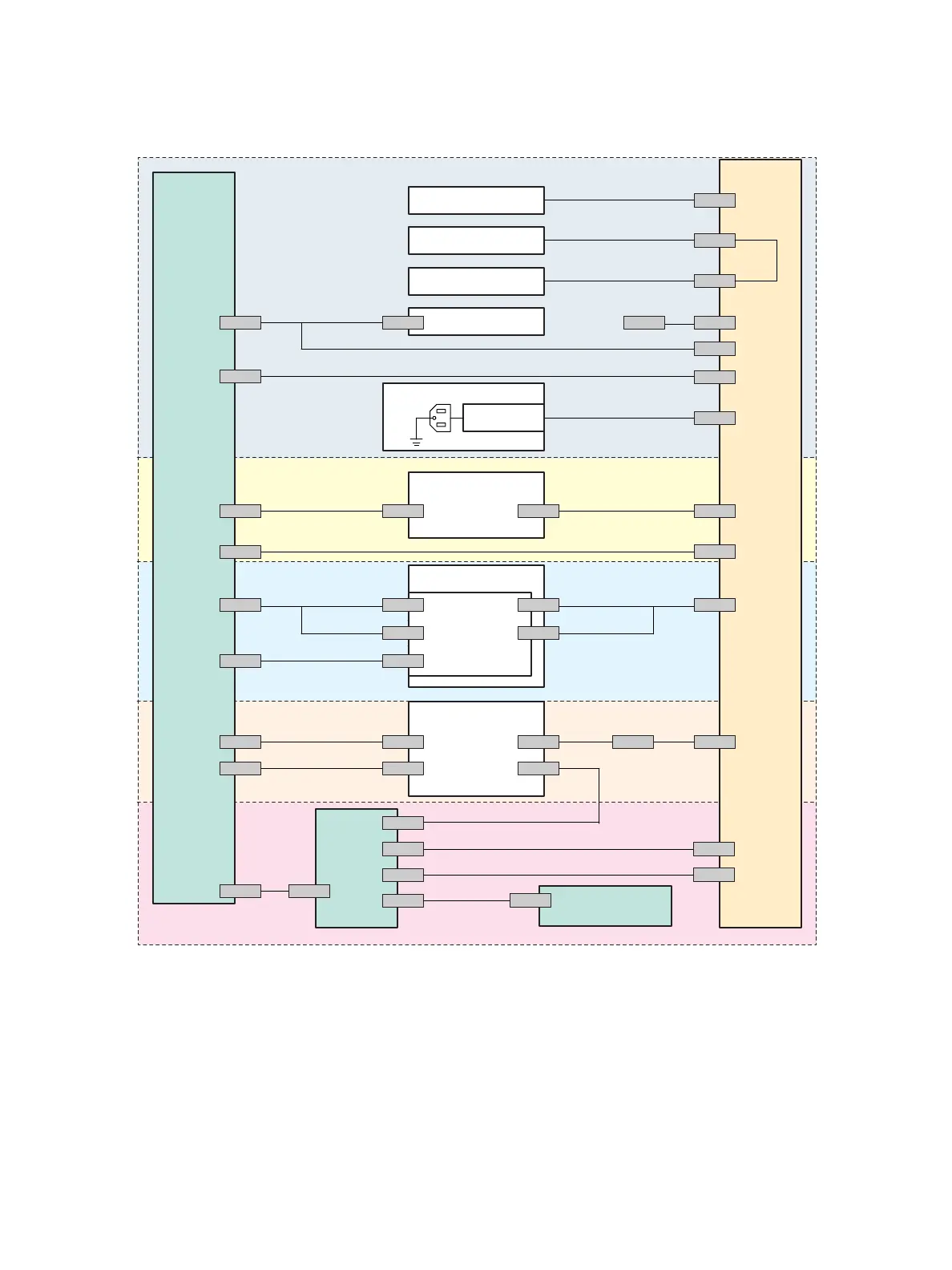

Phaser 6600 General Wiring Diagram
MCU Board
PL18.1.13
1
2
3
5
6
Harness Switch Assembly
PL18.1.31
Main Switch
Fuser
PL7.1.1
Drive Assembly
PL3.1.1
Main Motor
Sub Motor
Development Motor
Laser Assembly
PL7.1.1
IP Board
PL18.1.22
SFP Control Panel
PL1.1.1
LVPS
PL18.1.34
Main Fan
PL4.1.13
Rear Interlock Switch
PL14.1.3
Door Interlock Switch
PL19.1.21
Toner Full Sensor
PL4.1.17
P/J29 P/J203 P/J5071 P/J507
P/J42
P/J41
P/J503
P/J501
P/J40
P/J48
P/J47
P/J508
P/J509
P/J43P/J431P/J432
P/J112
P/J3411
P/J111
P/J111
P/J402 P/J40
P/J504
P/J403
P/J12
CN1
P/J36
P/J11
P/J10 P/J101
P/J311P/J171
P/J172
P/J331
P/J17
P/J33
P/J28 P/J281
P/J29
P/J312
P/J281
P/J30
s6600-293
