Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-120
MFP Left Hand Inner Pole Cover
PL19.1.14
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the USB Hub Board. (page 4-121)
2. Remove the Scanner Assembly. (page 4-138)

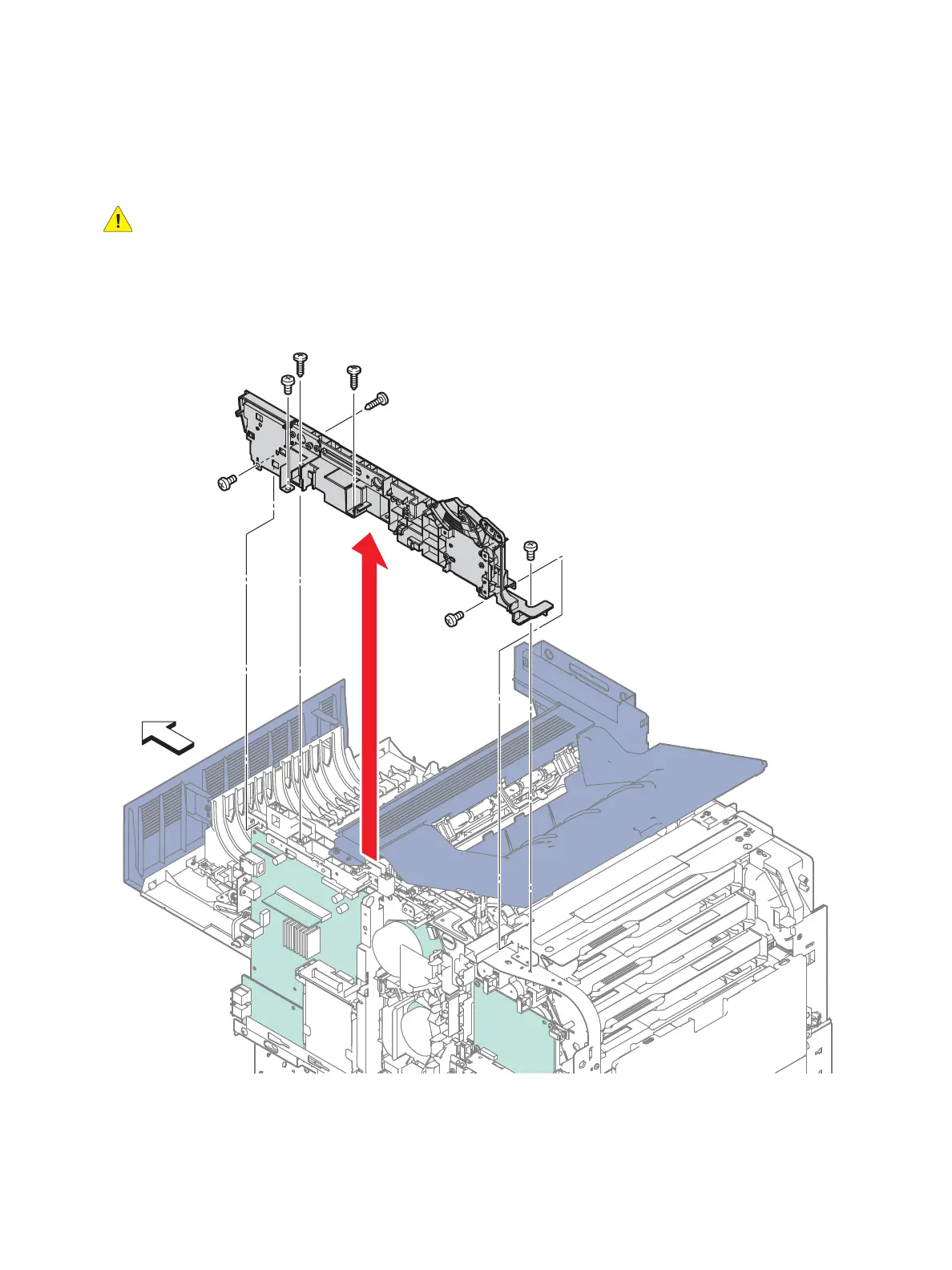

3. Remove seven screws (three silver, tapping, 8mm; four silver, 6mm) that attach the MFP Left Hand
Inner Pole Cover to the printer and remove the cover.
To Next Page
