Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-83
Cassette Stopper
PL15.1.10
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.

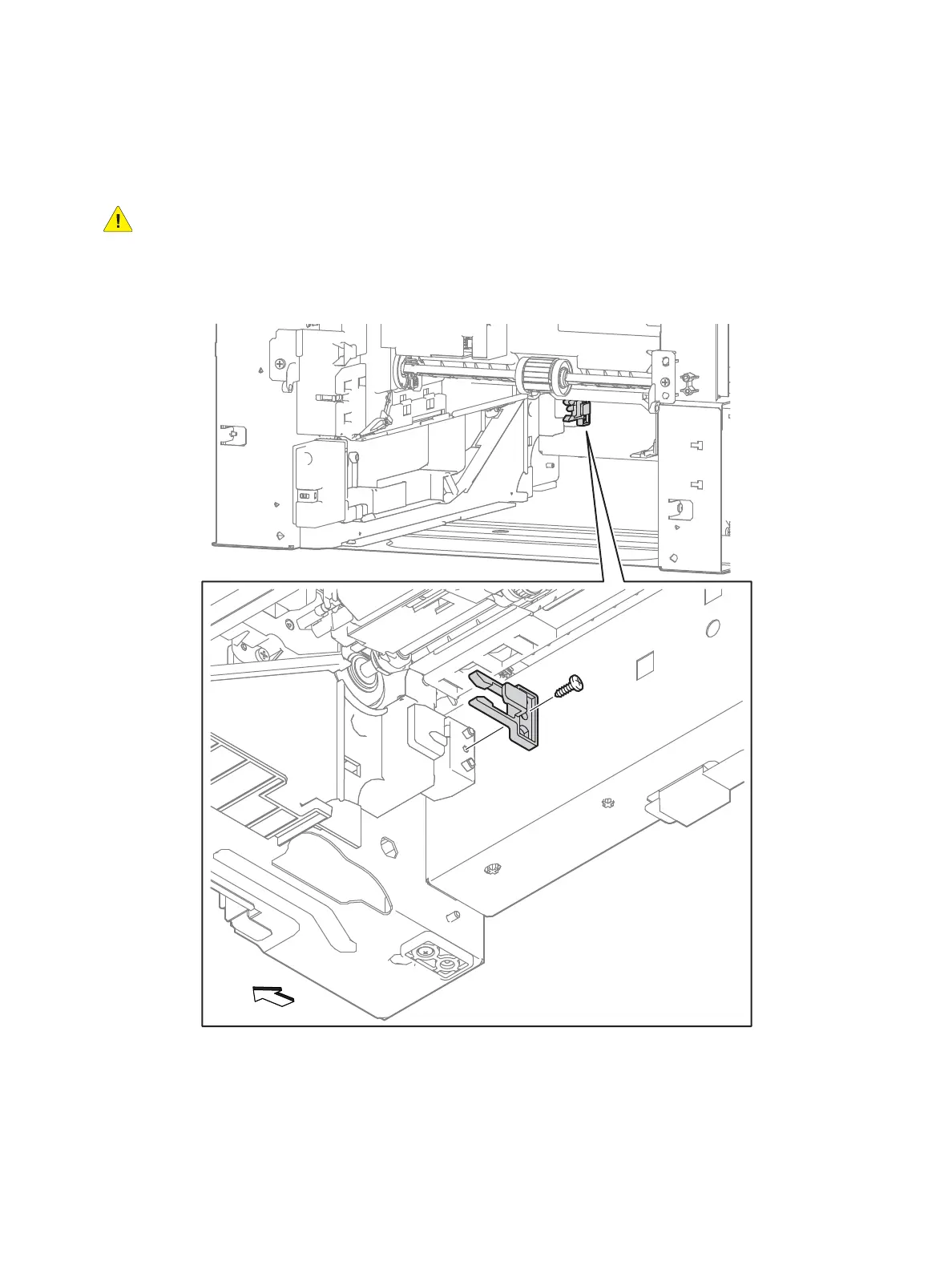

1. Remove the Lower Regi Chute / Opt 550 Regi Chute. (page 4-85)
2. Remove the screw (silver, tapping, 8mm) that attaches the CST Stopper (PL15.1.10) to the printer
and remove the stopper.
