Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-82

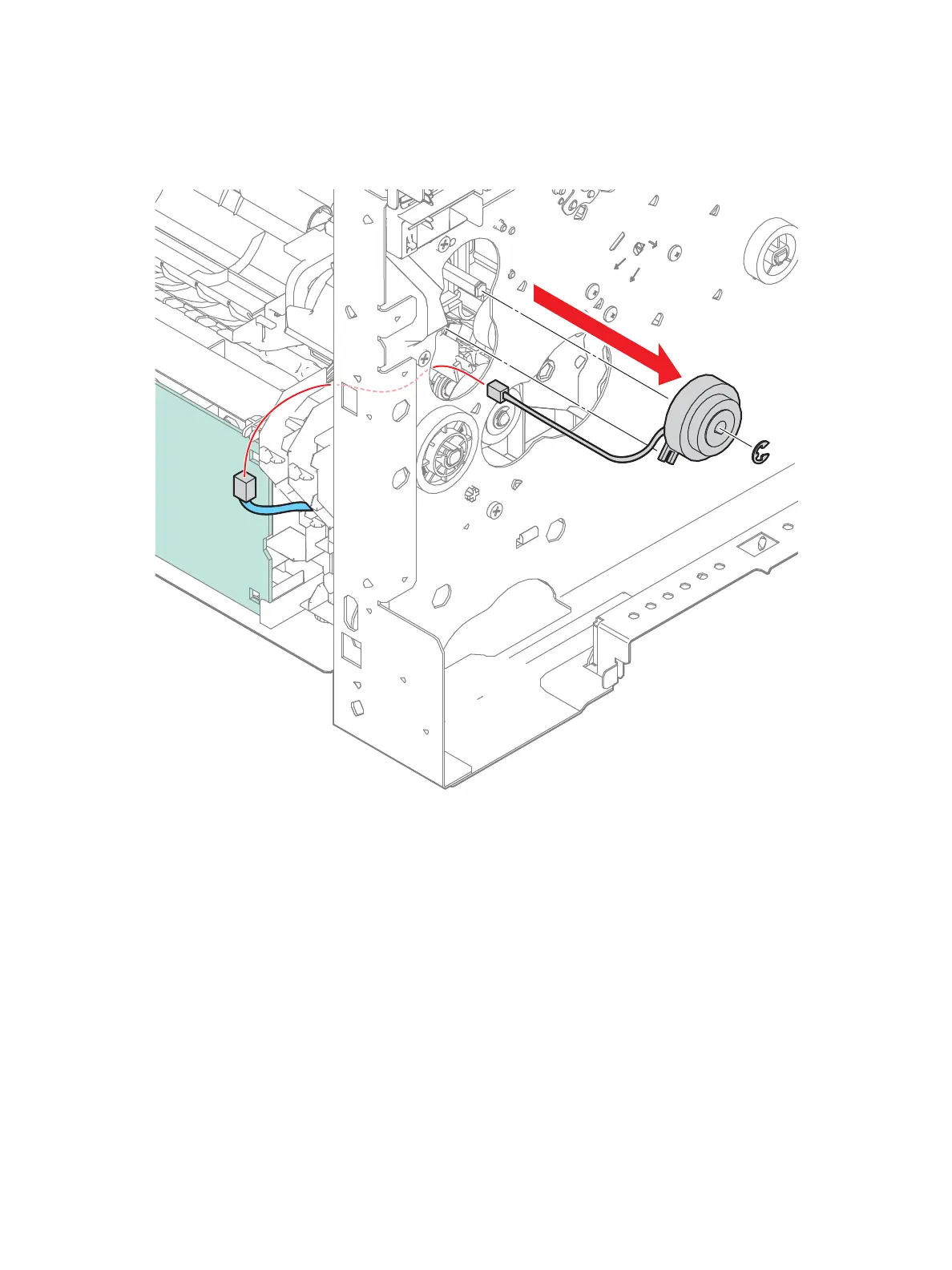

10. Unplug connector P/J234 on the harness coming from the Regi Clutch Assembly (PL15.1.8), and
release the harness from the harness guide.
11. Remove the E-ring holding the Regi Clutch Assembly, and pull the assembly off the shaft.
