Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-62
550 Option Feed Roller Assembly
PL10.2.3
1. Remove the Optional 550-Sheet Feeder from the printer. (page 4-53)
2. Remove the 550 Option Cassette Assembly from the Optional 550-Sheet Feeder.

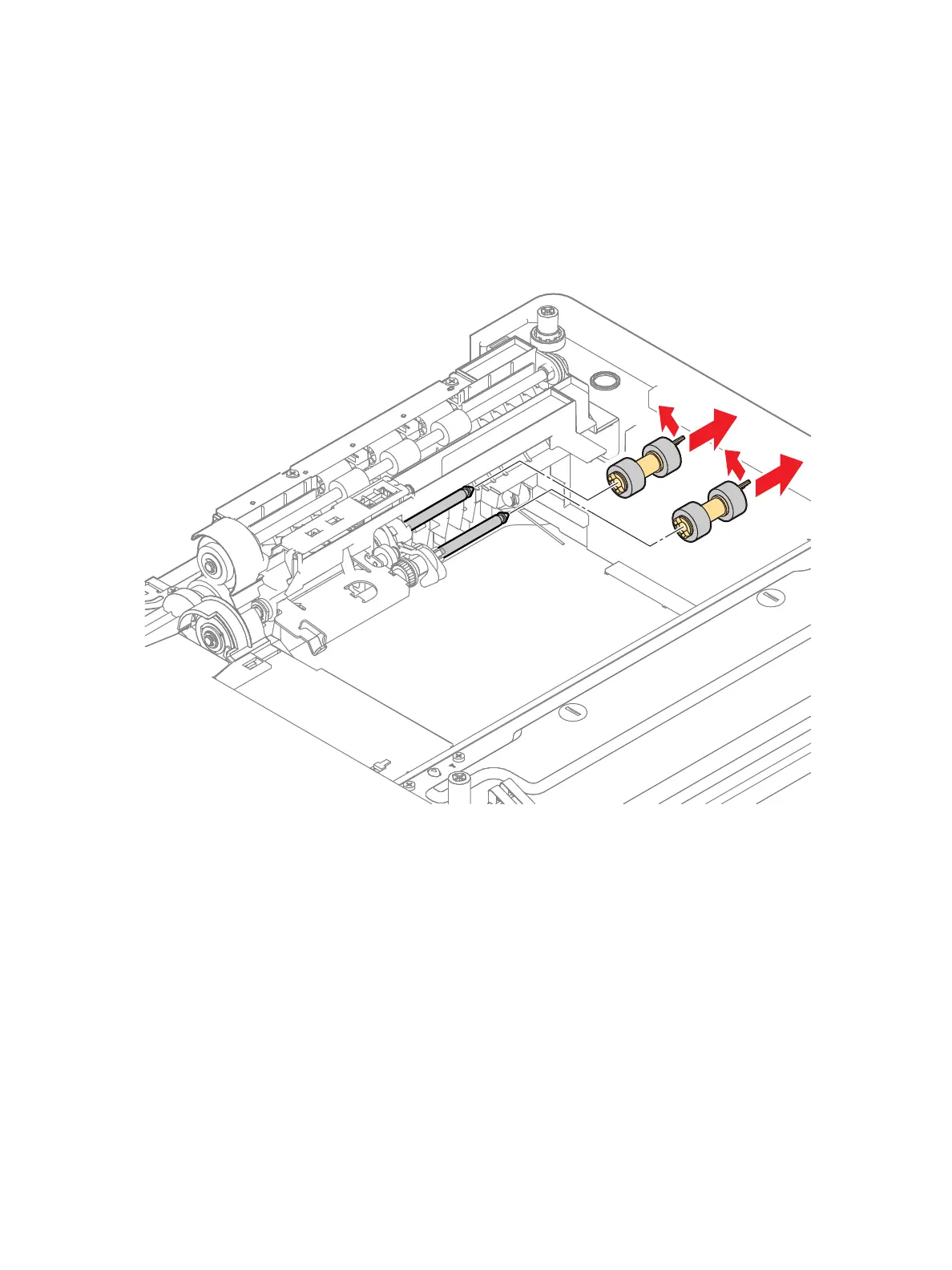

3. Release the hook holding the Feed Roller Assembly (PL10.2.3), and slide the assembly off the
shaft.
s6600-125
