Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-94
Stack Full Actuator
PL17.1.10
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Exit Cover. (page 4-125)

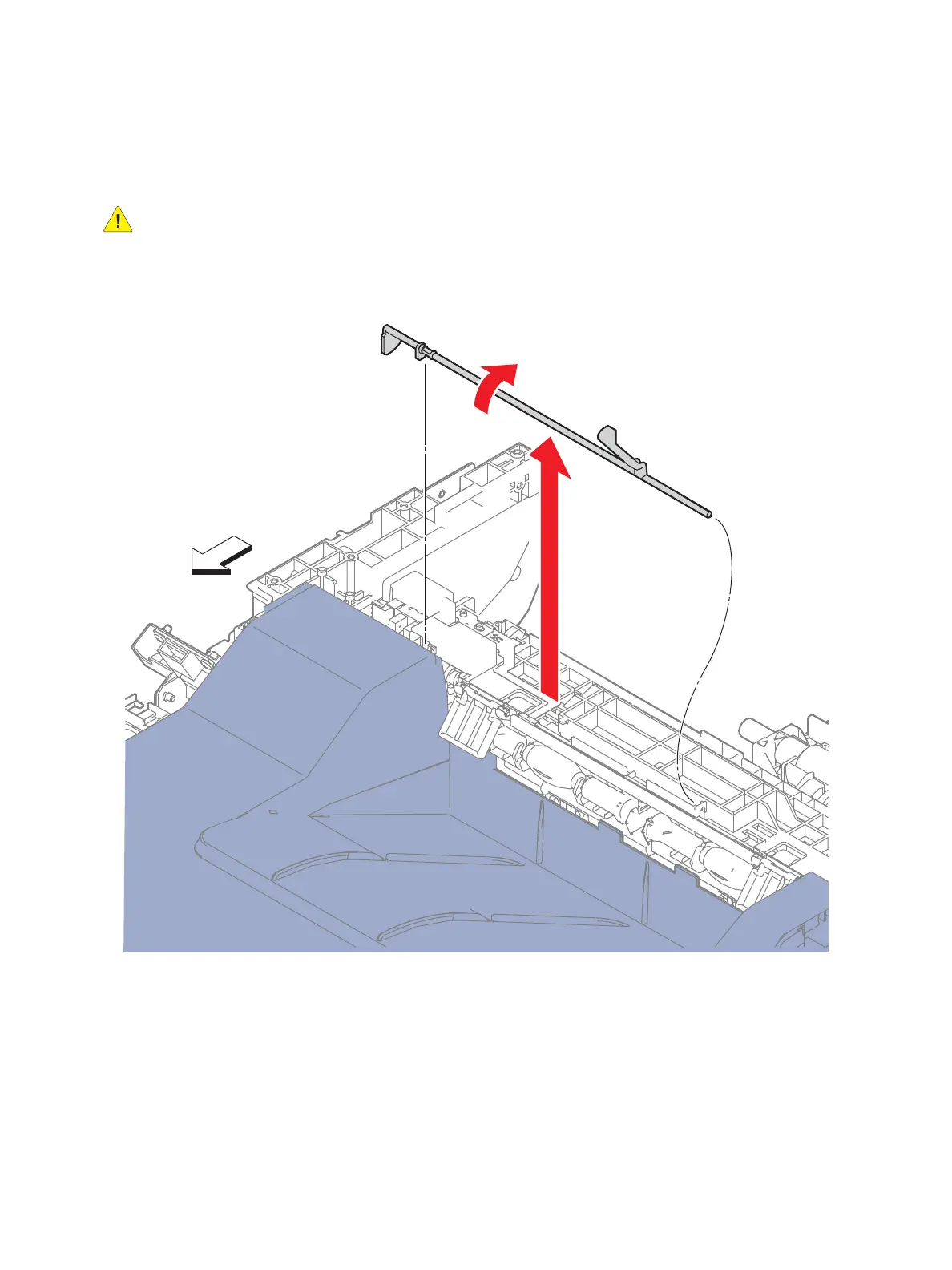

2. Remove the Stack Full Actuator (PL17.1.10) by swinging it 90° upward, and by releasing the left
end, and then by releasing the right end from the hole.
