Xerox WorkCentre 6605 Service Manual

Wiring
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
7-42

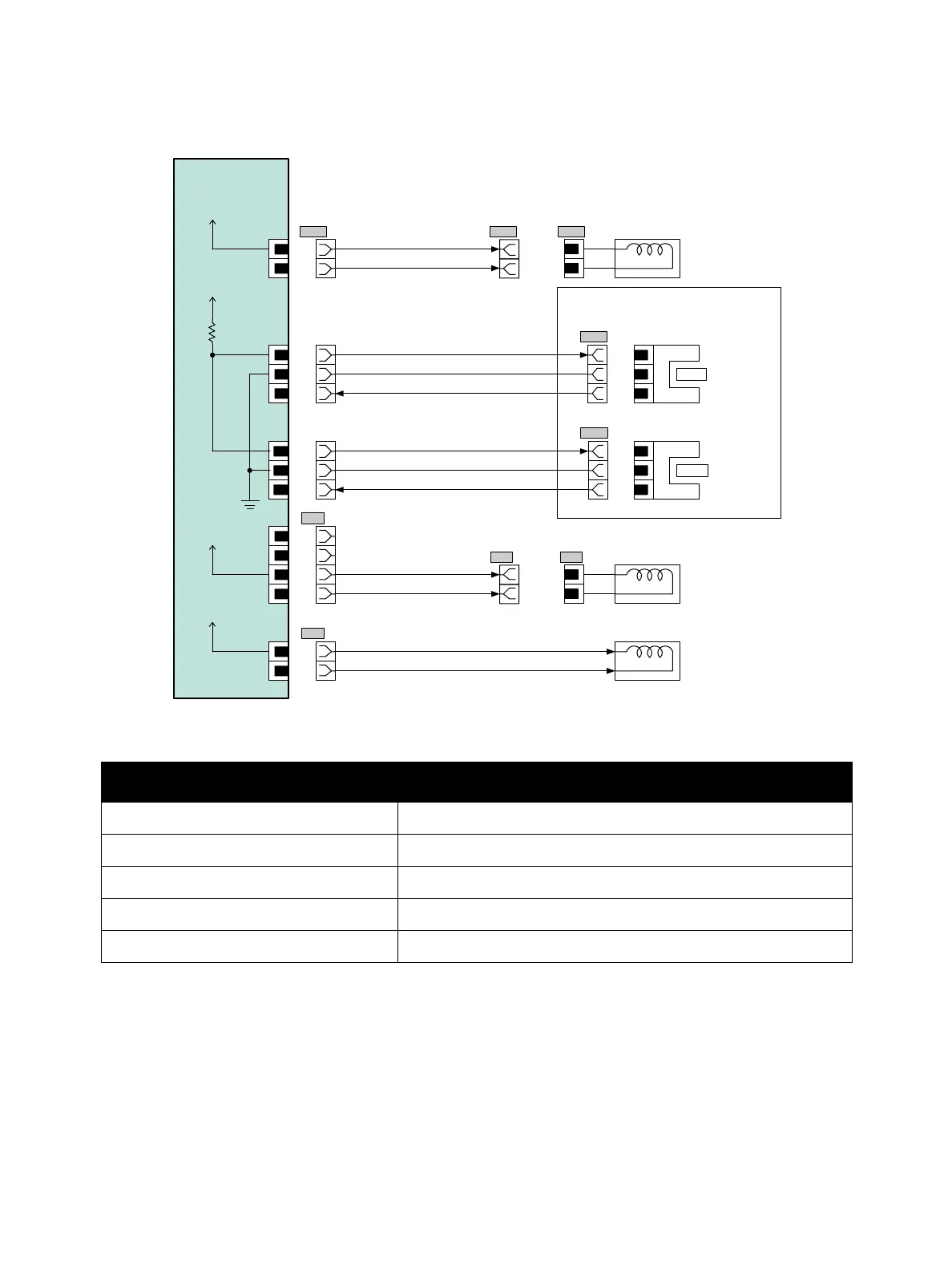

Paper Transport
Signal line name Description
REGI CL ON ON/OFF signal for the Regi Clutch
TRAY PAPER SENSED SIGNAL Media detected in the tray by the No Paper Sensor
REGI PAPER SENSED SIGNAL Media detected in the Pre Registration section by the Regi Sensor
FEED CL ON ON/OFF signal for the Feed Clutch
DUP CL ON ON/OFF signal for the Duplex Clutch
MCU Board
PL18.1.13
3
4
+5VDC
SG
5
P/J22
1
TRAY PAPER SENSED SIGNAL
I/L +24VDC
2
DUP CL ON
P/J233
3
2
1
No Paper
Sensor
I/L +24VDC
+5VDC
6
7
+5VDC
SG
8
REGI PAPER SENSED SIGNAL
P/J232
3
2
1
Regi
Sensor
Feed
Clutch
PL15.2.6
3
4
I/L +24VDC
FEED CL ON
I/L +24VDC
J392
2
P392
1
21
Regi
Clutch
PL15.1.8
P/J23
1
2
I/L +24VDC
REGI CL ON
I/L +24VDC
J234
2
P234
1
21
Registration Chute Assembly
PL15.2.1
P/J39
1
2
Duplex
Clutch
PL15.2.5
Regi Harness Assembly
PL15.2.8
Regi Harness Assembly
PL15.2.8
Regi Harness Assembly
PL15.2.8
s6600-227

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
