Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-124
MFP Lower Left Hand Rear Cover
PL19.1.23
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.

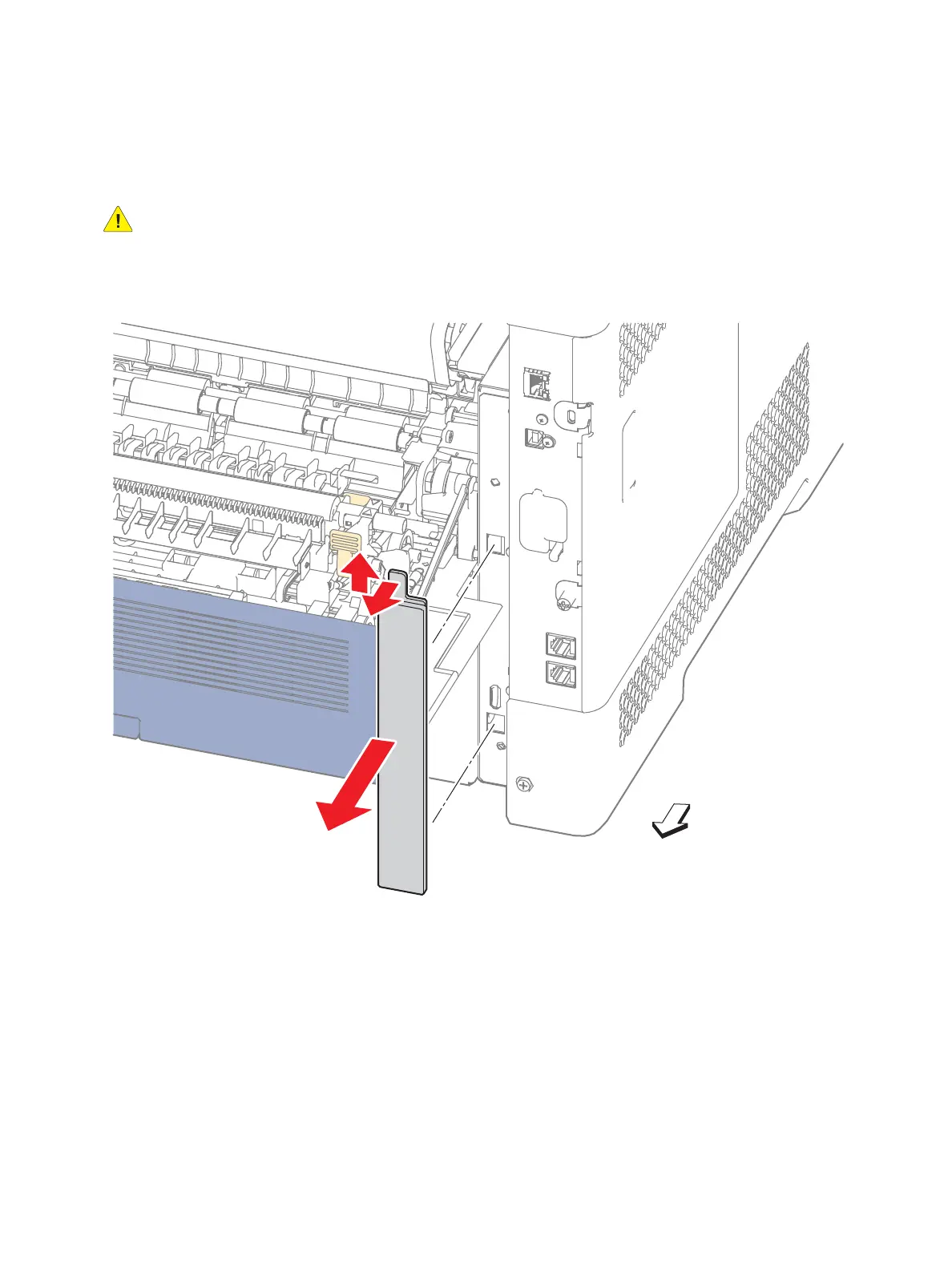

1. Open the Rear Door Assembly (PL19.1.95).
2. Release the boss that holds the Lower Left Hand Rear Cover and remove it by sliding it upward
until the two hooks are released.
