Fuser
Fuser Assembly
PL7.1.1
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.

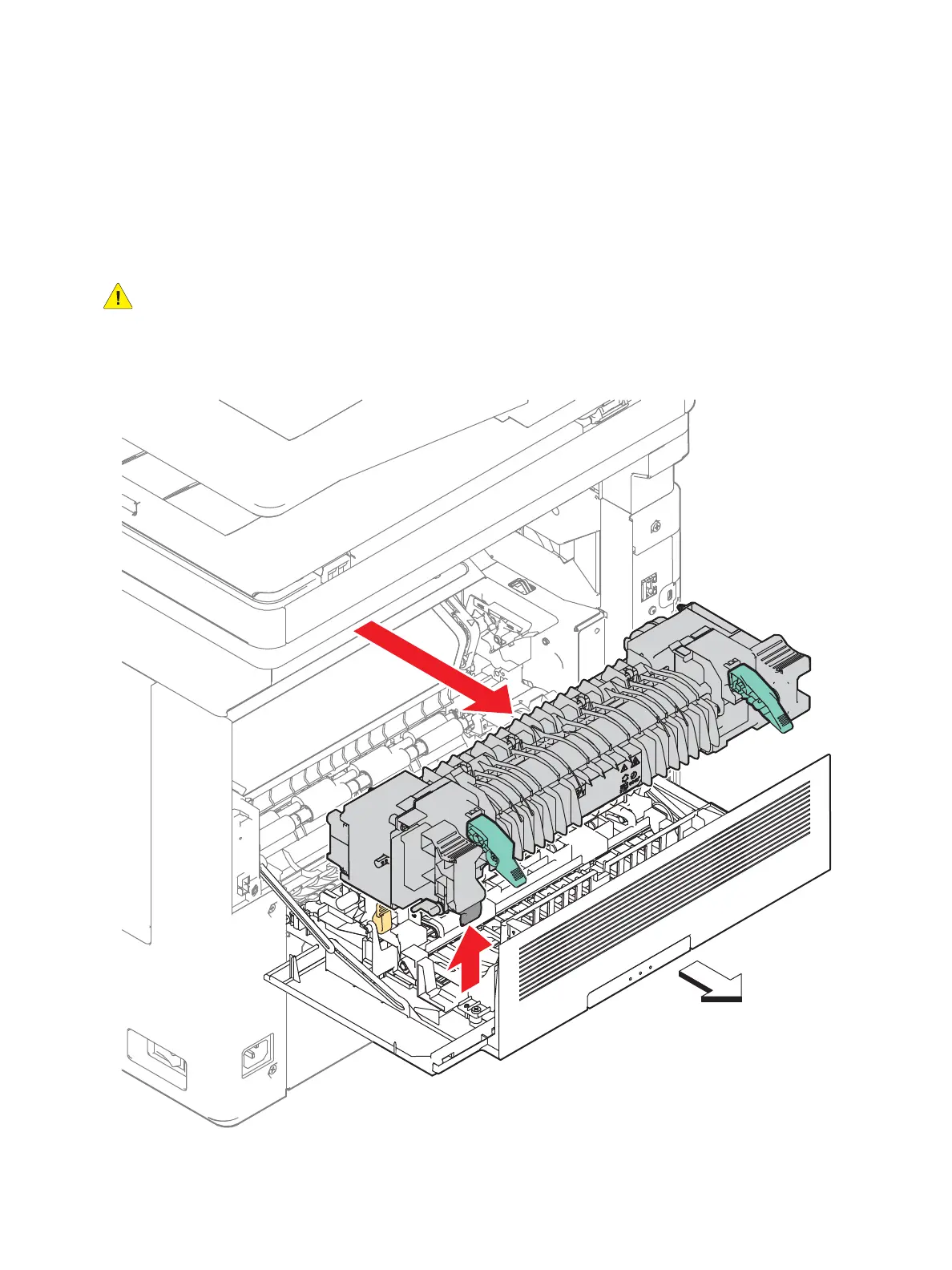

1. Open the Rear Door Assembly (PL19.1.95).
2. Press up on the Fuser latch release at the lower-left to unlock the Fuser Assembly, and pull it out to
the rear by the handles on the left and right sides.
