Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-66

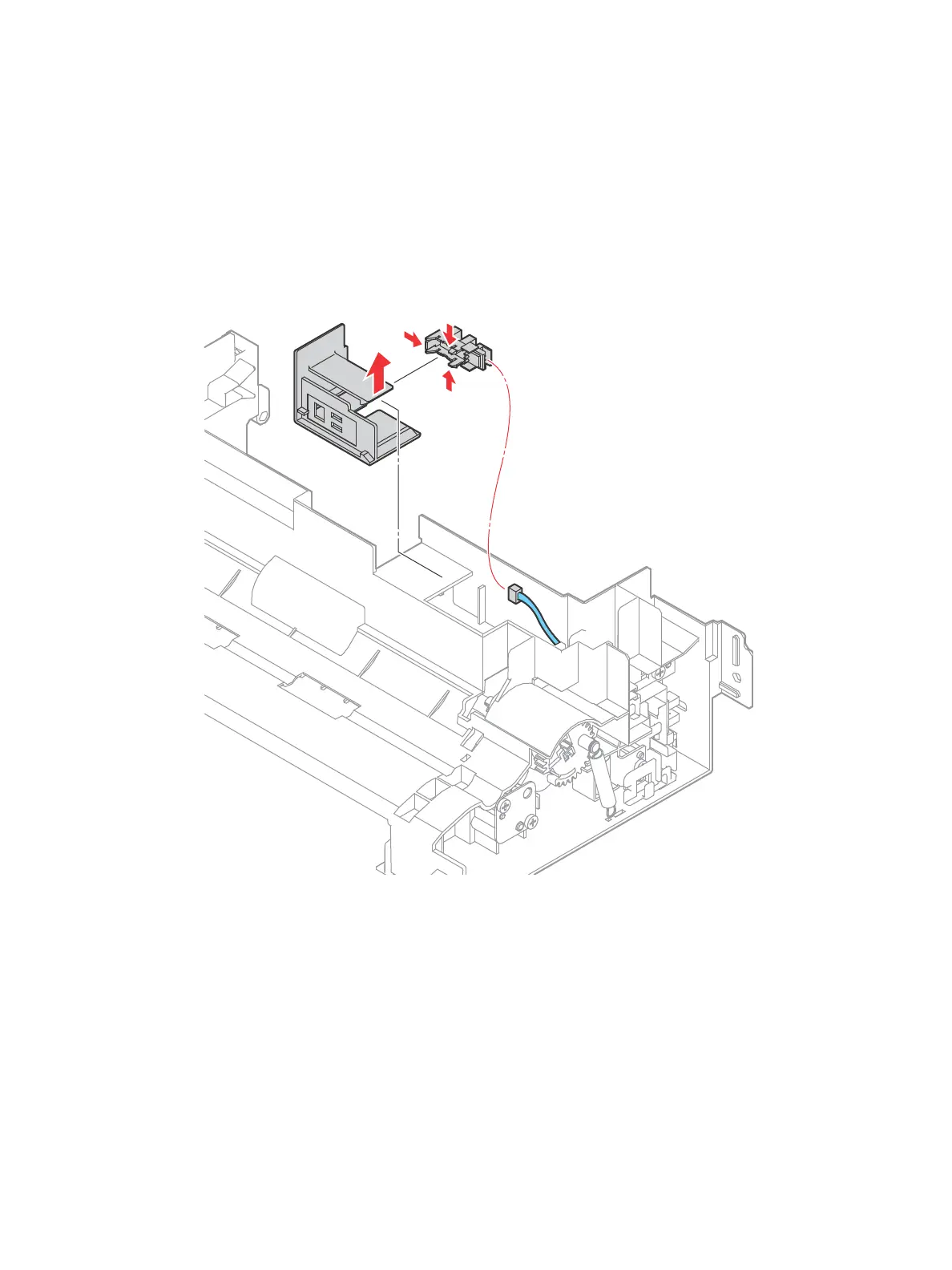

Bypass Tray No Paper Sensor
PL13.2.4
1. Remove the Bypass Tray Frame Assembly. (page 4-65)
2. Unplug connector P/J212 of the Bypass Tray No Paper Sensor (Interlock Photo Sensor - PL13.2.4).
3. Release the hook holding the Bypass Tray No Paper Bracket (PL13.2.3) and remove the Bypass
Tray No Paper Bracket together with the Bypass Tray No Paper Sensor.
4. Release the hook holding the Bypass Tray No Paper Sensor and remove it.
s6600-145
