Xerox WorkCentre 6605 Service Manual

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-39
Dispenser
Upper Dispenser Motor Assembly (PL5.1.1) drives the paddle in the Toner Cartridge and the auger of
the Dispenser Assembly and feeds toner to the development section in the Imaging Unit.
The Upper Dispenser Motor Assembly consists of the following parts.
• Toner Dispense Motor (Y,M)
Drives the yellow and magenta Toner Cartridges and the Dispenser Assembly via the gear.
• Toner Dispense Motor (C,K)
Drives the cyan and black Toner Cartridges and the Dispenser Assembly via the gear.
Toner Cartridges Y (PL5.1.8), M (PL5.1.9), C (PL5.1.10), K (PL5.1.11) store toner and a small amount of
carrier.
The Dispenser Assemblies (Y (PL5.1.4), M (PL5.1.5), C (PL5.1.6), K (PL5.1.7)) feed toner to the developer.

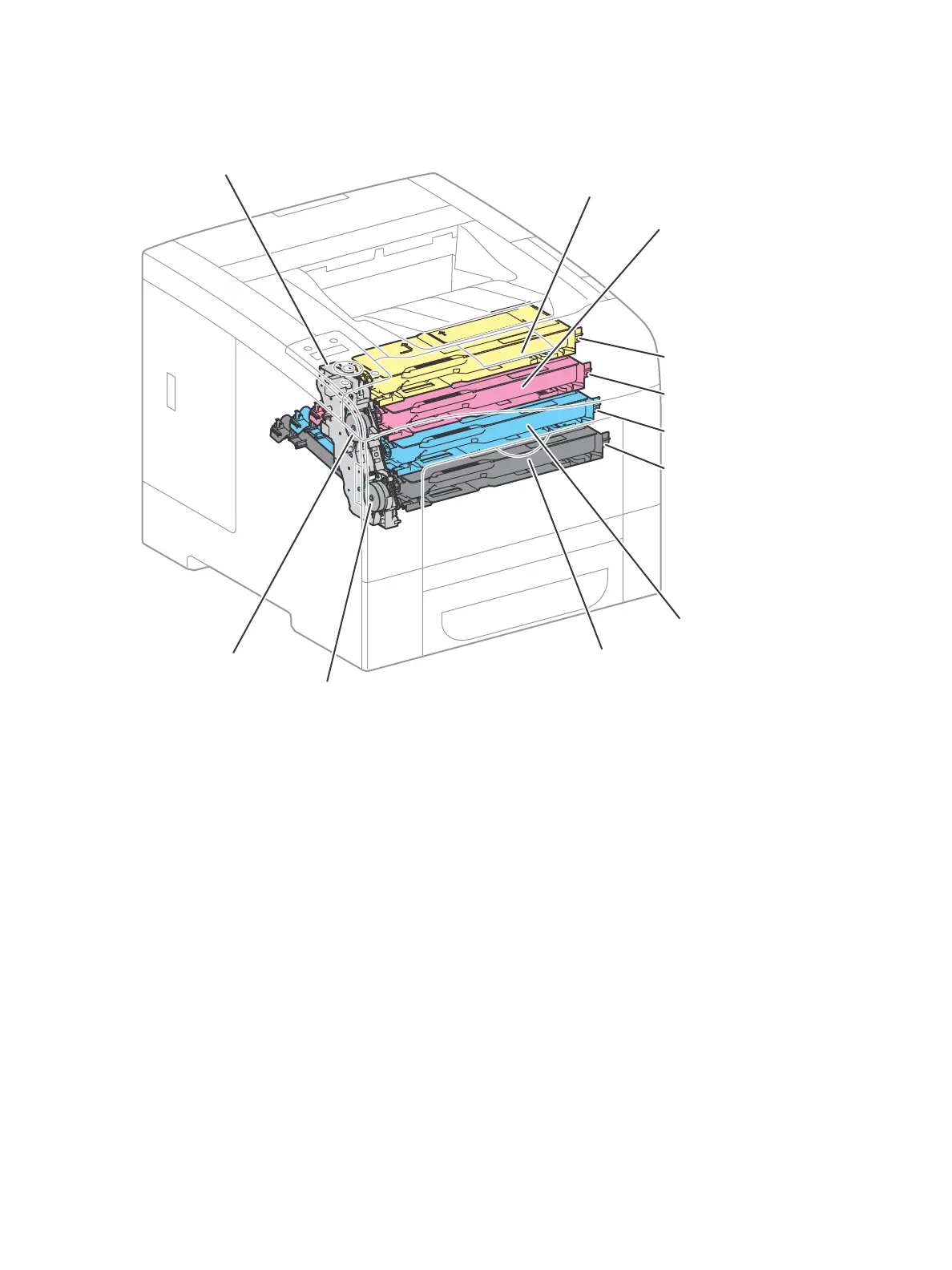

s6600-261
Upper Dispenser Motor Assembly
Toner Dispense Motor (Y, M)
Toner Cartridge (Y)
Toner Cartridge (M)
Toner Cartridge (C)
Toner Cartridge (K)
Dispenser Assembly (Y)
Dispenser Assembly (M)
Dispenser Assembly (C)
Dispenser Assembly (K)
Toner Dispense Motor (C, K)

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
