Xerox WorkCentre 6605

Wiring
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
7-15

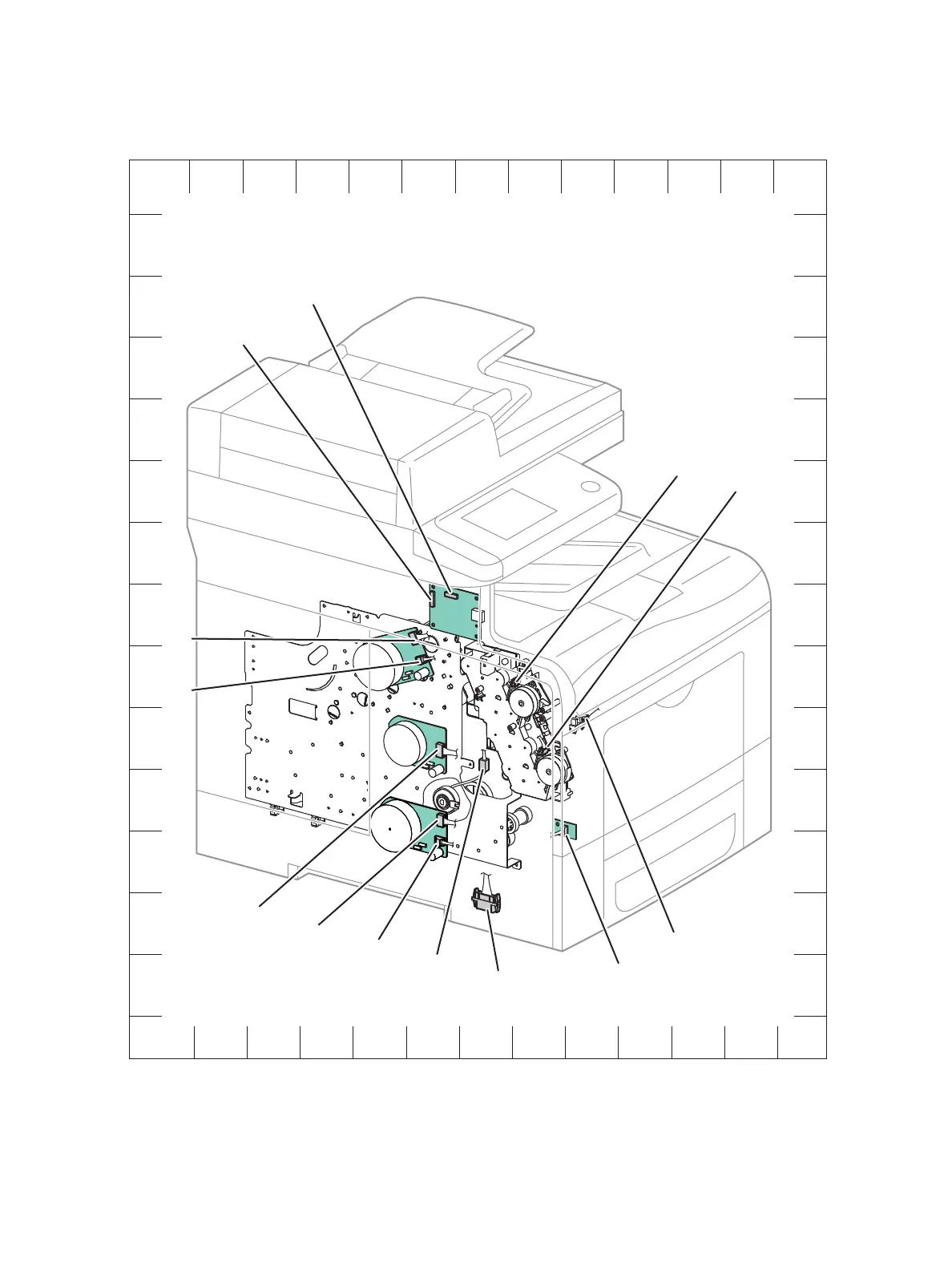

WorkCentre 6605 Plug/Jack Locations
A
101
102
103
104
105
106
107
108
109
110
111
112
113
114
100
BCDEFGH IJ KL
s6600-215
171
820
830
311
141
144
331
172
312
213
271
251
145
