Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-74
Bypass Tray Chute Assembly
(PL13.3.5)
1. Remove the Bypass Tray Assembly. (page 4-71)
2. Remove the Bypass Tray Cover Assembly. (page 4-72)
3. Remove the Bypass Tray Lower Cover. (page 4-73)

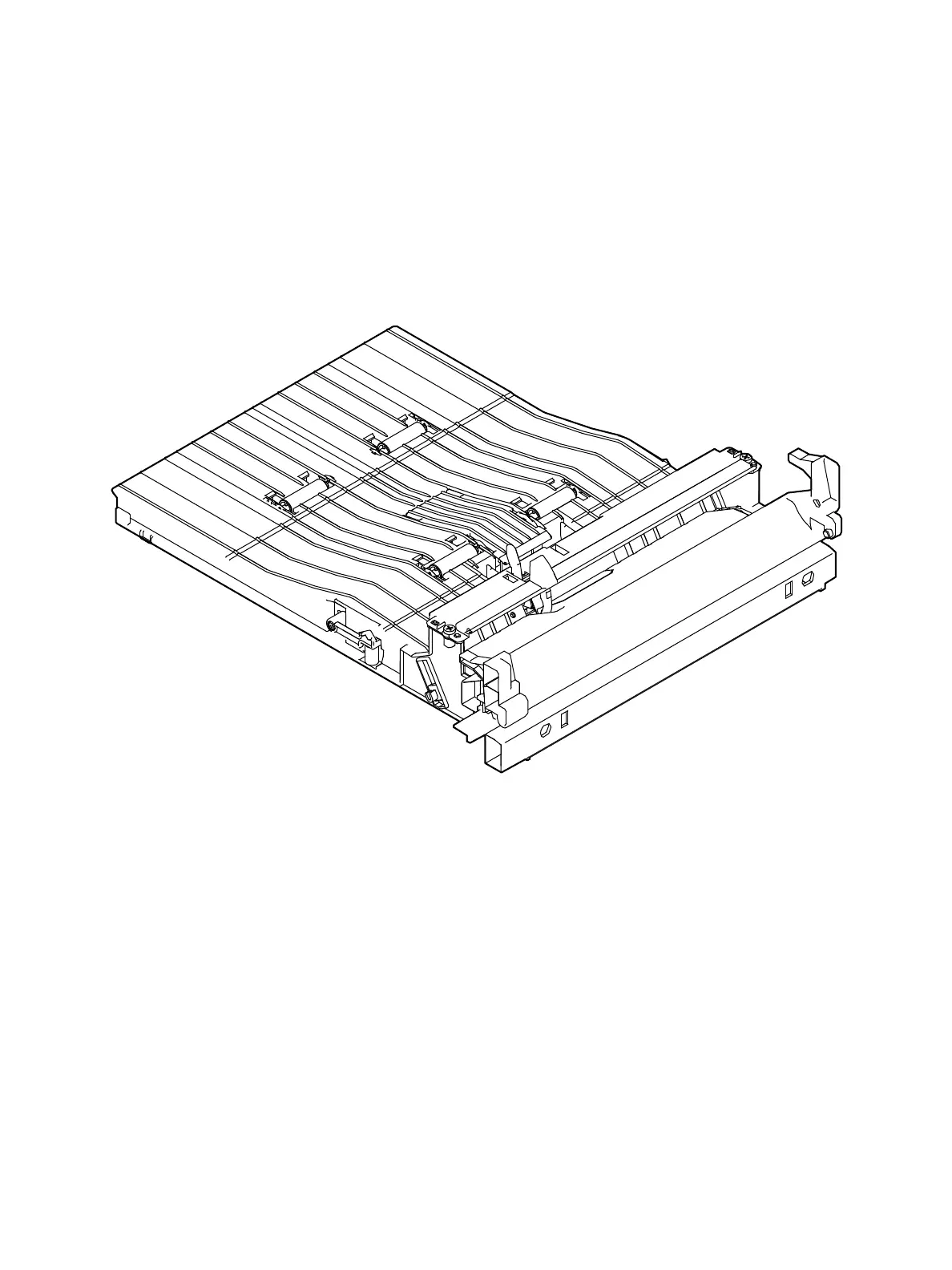

Note: This figure shows the Bypass Tray Chute Assembly (PL13.3.5) as it appears after the covers
are removed.
