Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-91
Feed Clutch Assembly
PL15.2.6 (Same as PL 10.1.8)
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.

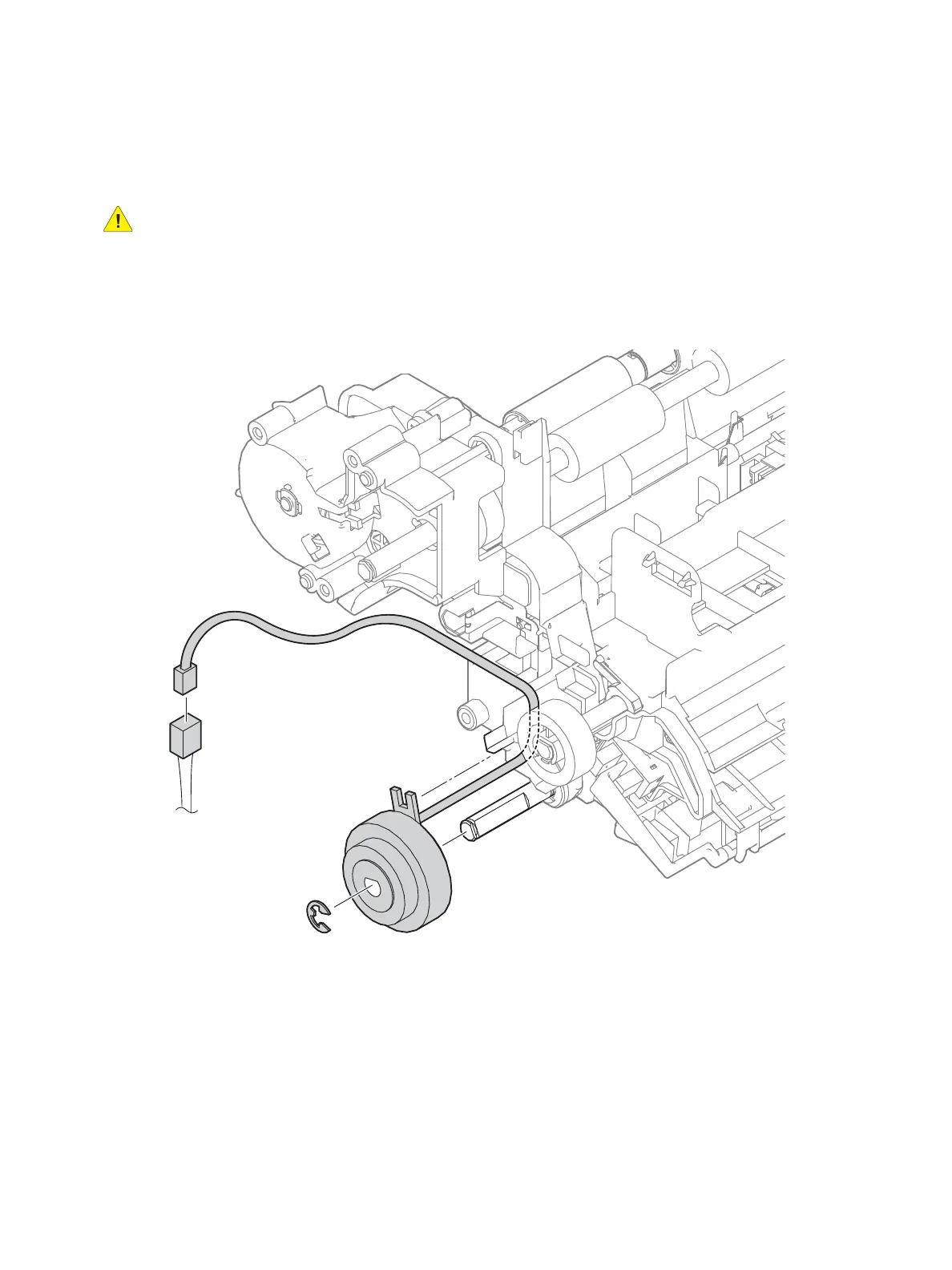

1. Remove the Regi Chute Assembly. (page 4-86)
2. Unplug connector P/J392 on the harness coming from the Feed Clutch Assembly, and release the
harness from the harness guide.
3. Remove the E-ring holding the the Feed Clutch Assembly, and then pull the clutch off of the shaft.
To Next Page
