Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-73
Bypass Tray Lower Cover
PL13.3.4
1. Remove the 550 Cassette Assembly from the printer.
Note: If the hook position is difficult to locate in the following step, this step can be performed
after the removing the Bypass Tray Assembly (page 4-71).

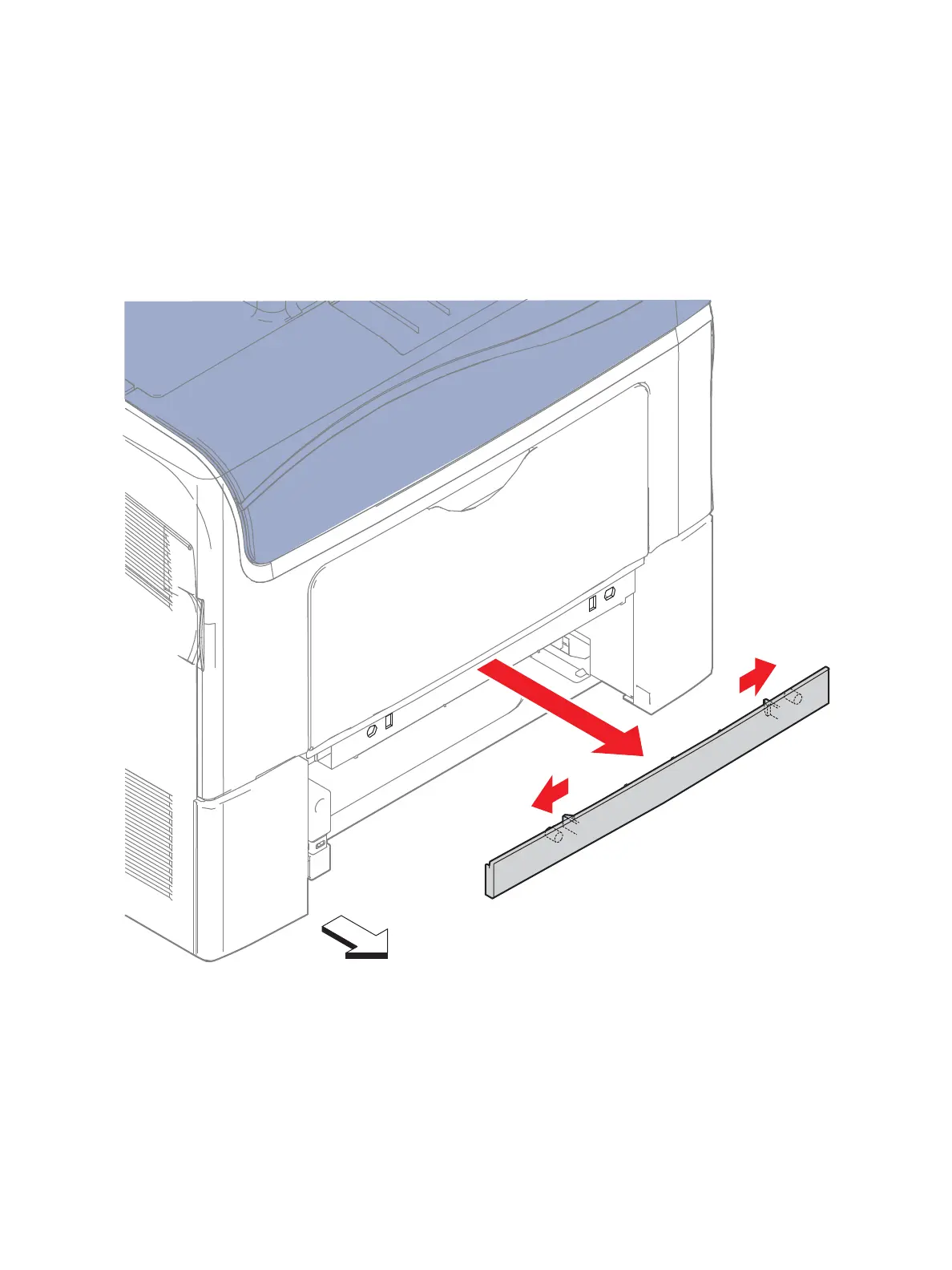

2. Release the two hooks holding the Bypass Tray Lower Cover (PL13.3.4) and remove the cover.
Front
