Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-123
MFP Right Hand Inner Pole Cover
PL19.1.20
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Scanner Assembly. (page 4-138)

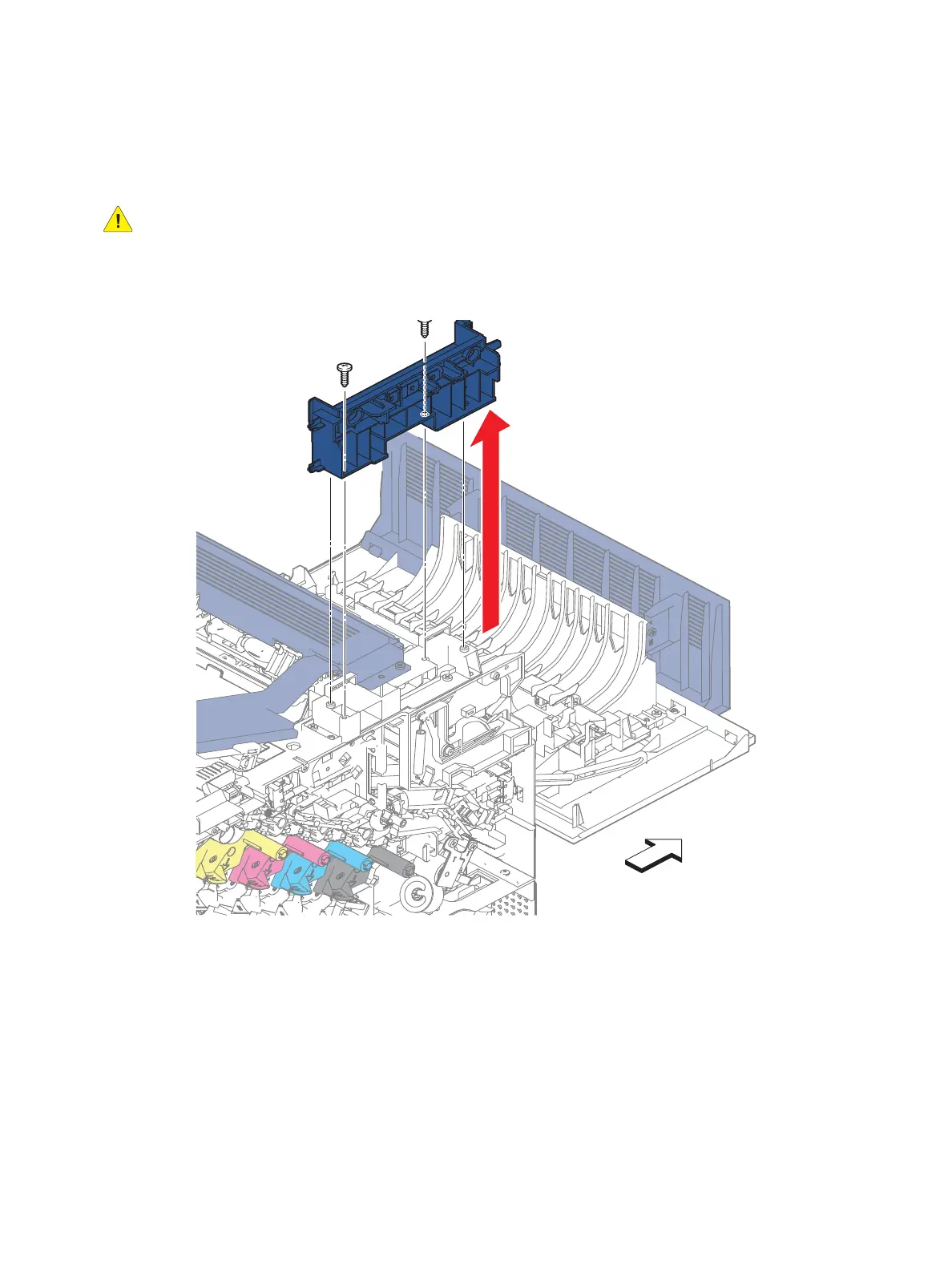

2. Remove the two screws (silver, tapping, 8mm) that attach the Right Hand Inner Pole Cover to the
printer and remove the cover.
s6600-151
Rear
