Xerox WorkCentre 6605 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-8
MFP Control Panel Assembly
PL1.1.1
1. Remove the Front Door Assembly. (page 4-128)
2. Remove the Left Cover Assembly. (page 4-136)
3. Unplug connector P/J 830 from the USB Hub Board (page 4-121), and release the harness from
the harness guide.
4. Remove the screw that attaches the ground wire to the frame.

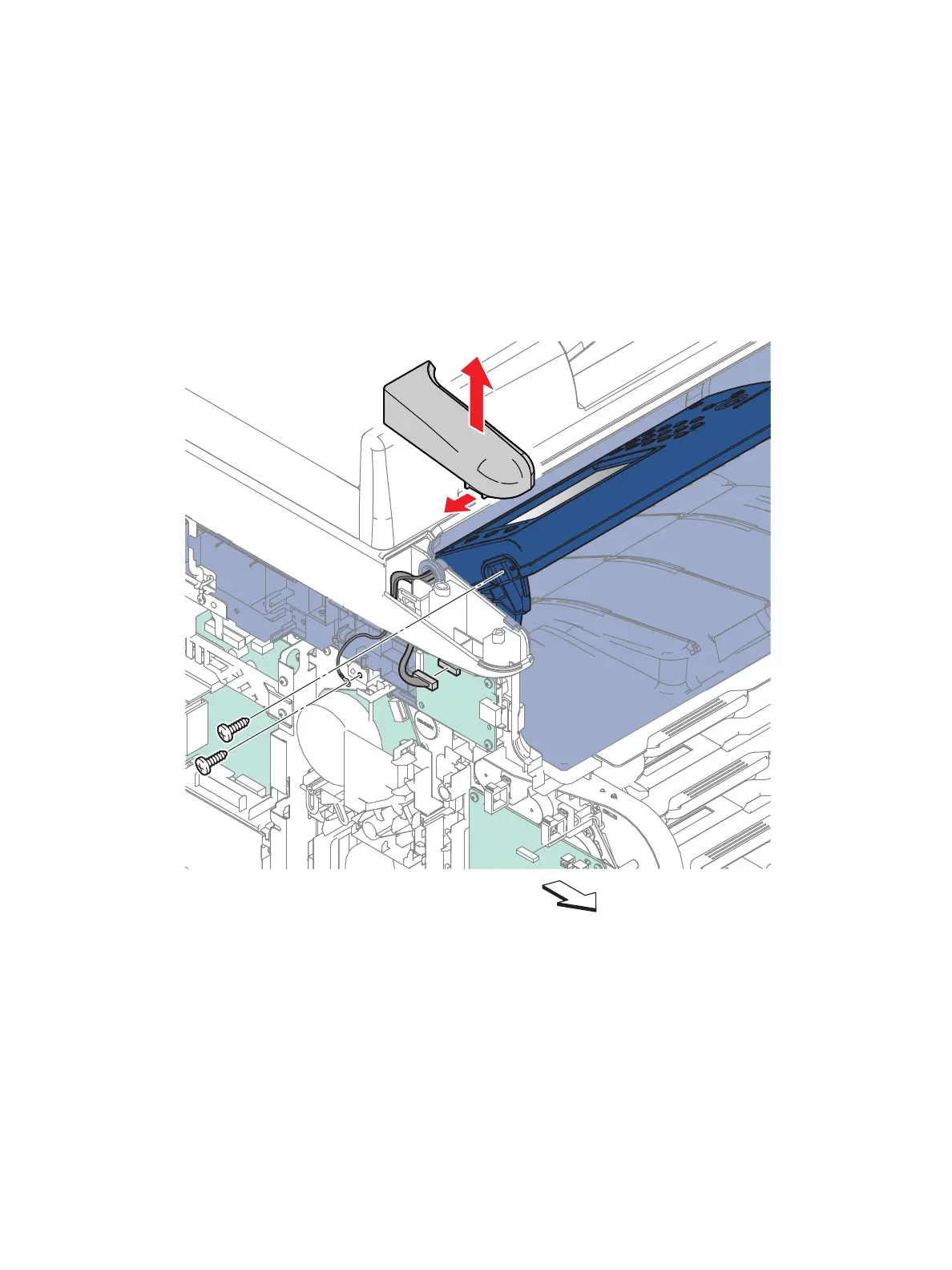

5. Release the hook and lift the Control Panel Hinge Cover off the printer.
s6600-056
Front

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
