Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-9

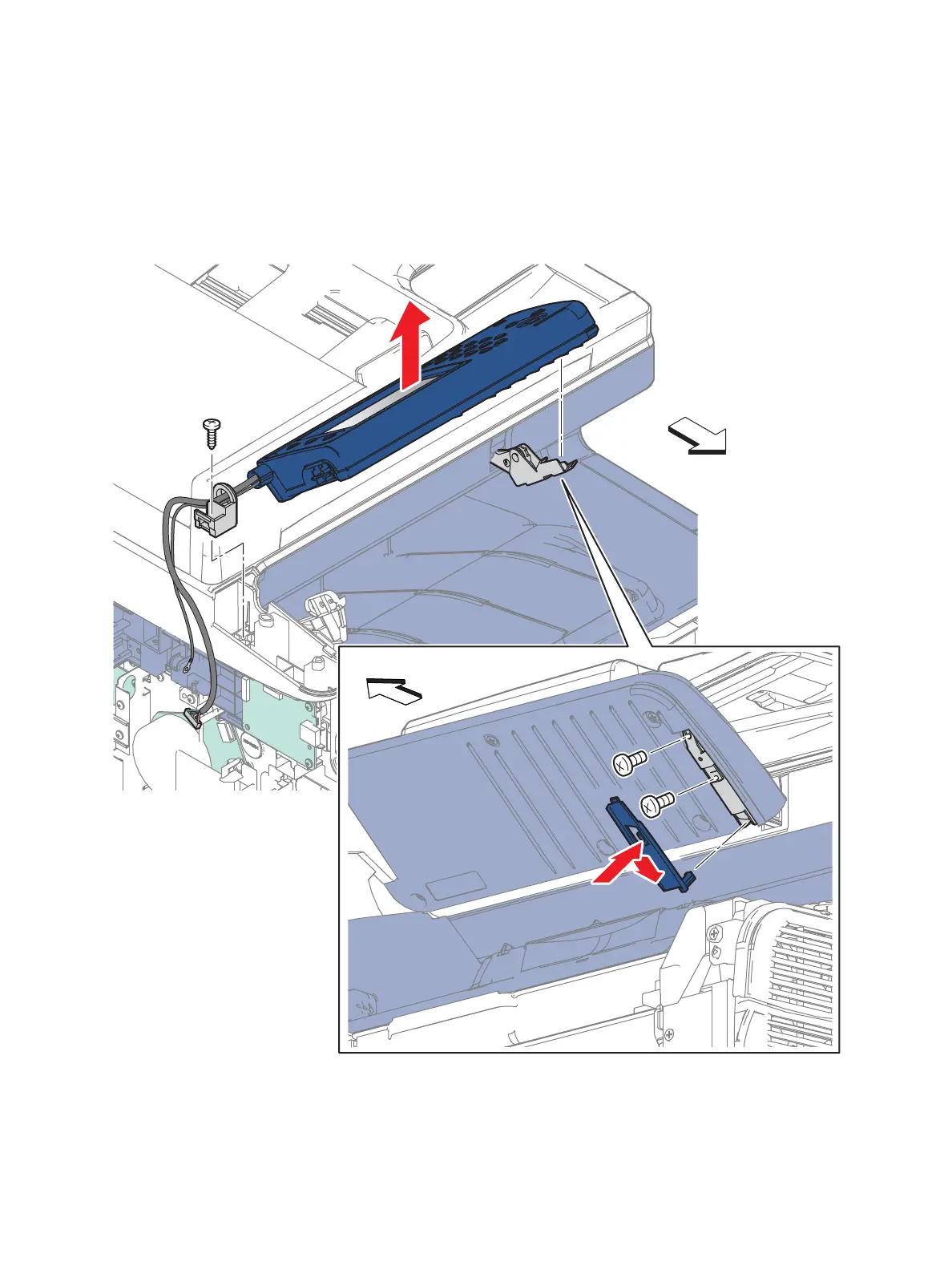

6. Remove the screw (silver, 6mm) that attaches the MFP Control Panel Pivot Holder (PL19.1.58) to
the printer, and lift the pivot holder off the boss on the frame.
7. Push the boss on right-side Bracket Cover to release it from the bracket, and slide the Bracket Cover
to the rear and off the Control Panel.
8. Remove the two screws (silver, 6mm) that attach the Control Panel Assembly to the bracket.
9. Remove the Control Panel Assembly.
