Xerox WorkCentre 6605 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-130
Right Side Door Assembly
PL19.1.96
1. Open the Right Side Door Assembly.
2. Remove the two screws (silver, tapping, 8mm) that attach each of the Right Side Door Straps (SFP
PL19.1.29; MFP PL 19.1.37) to the Right Cover Assembly (PL19.1.97).
3. Remove the Right Side Door Assembly while flexing it to release the bosses one by one from the
holes.
Tip: When removing the Right Side Door, lift it to the almost-closed position to allow it to flex
easily.

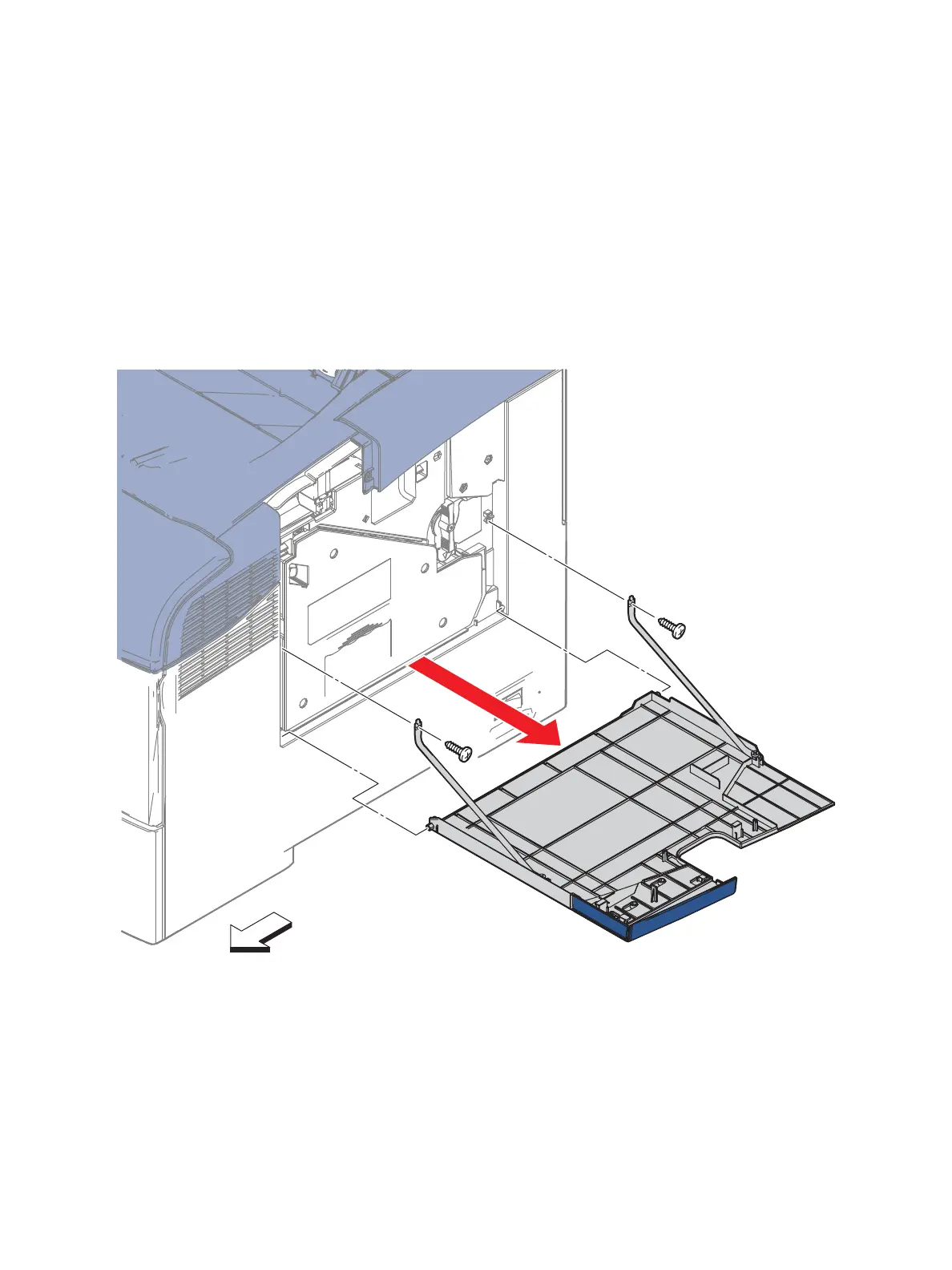

s6600-199
Front
SFP
