Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-68
Feed Roller Assembly
PL13.2.10
1. Remove the 550-sheet Paper Tray (PL9.1.1).
2. Remove the Bypass Tray Assembly. (page 4-71)

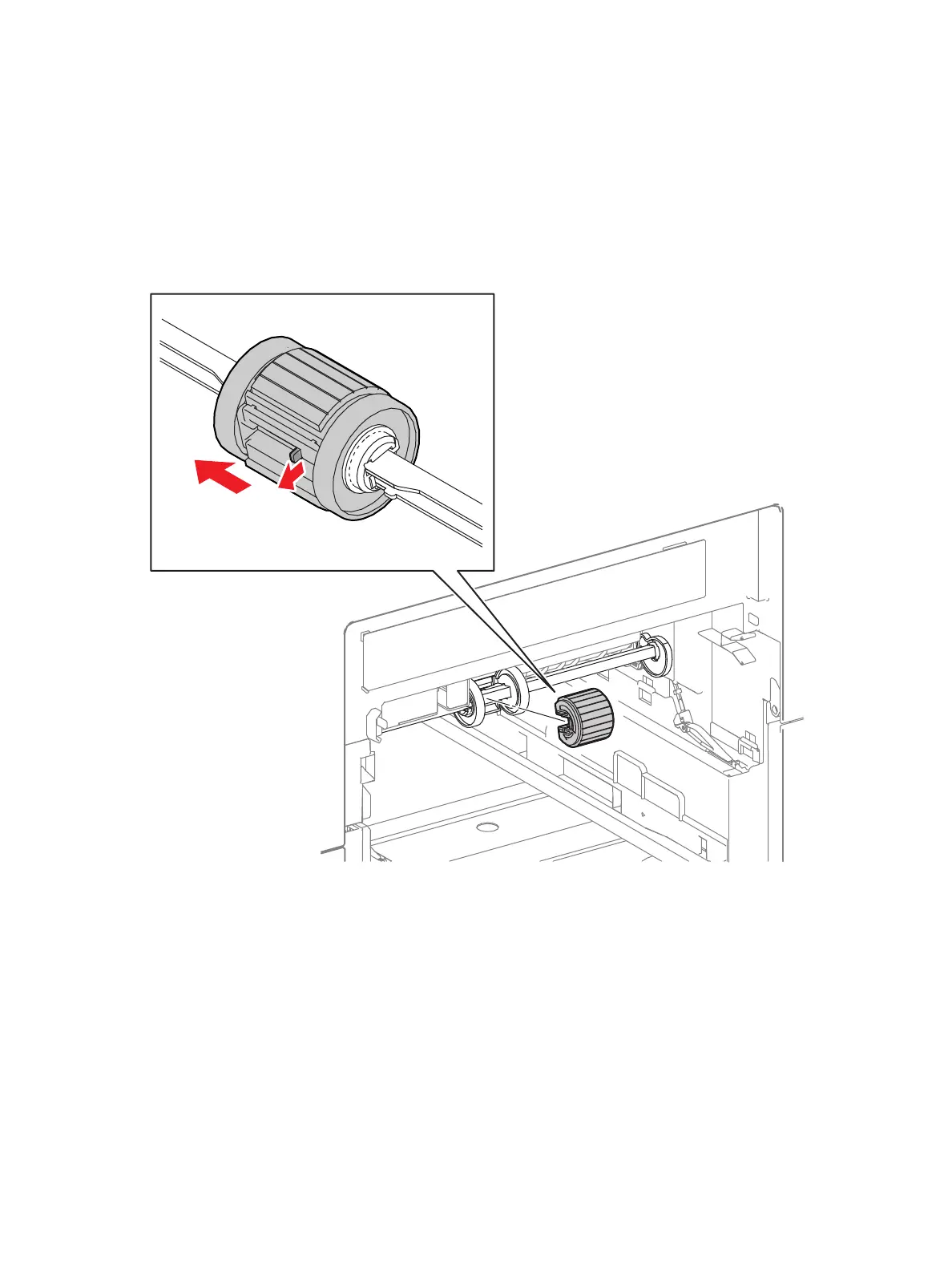

3. Release the hook holding the Feed Roller Assembly and remove the Feed Roller Assembly by sliding
it to the right.
s6600-130
