Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-90

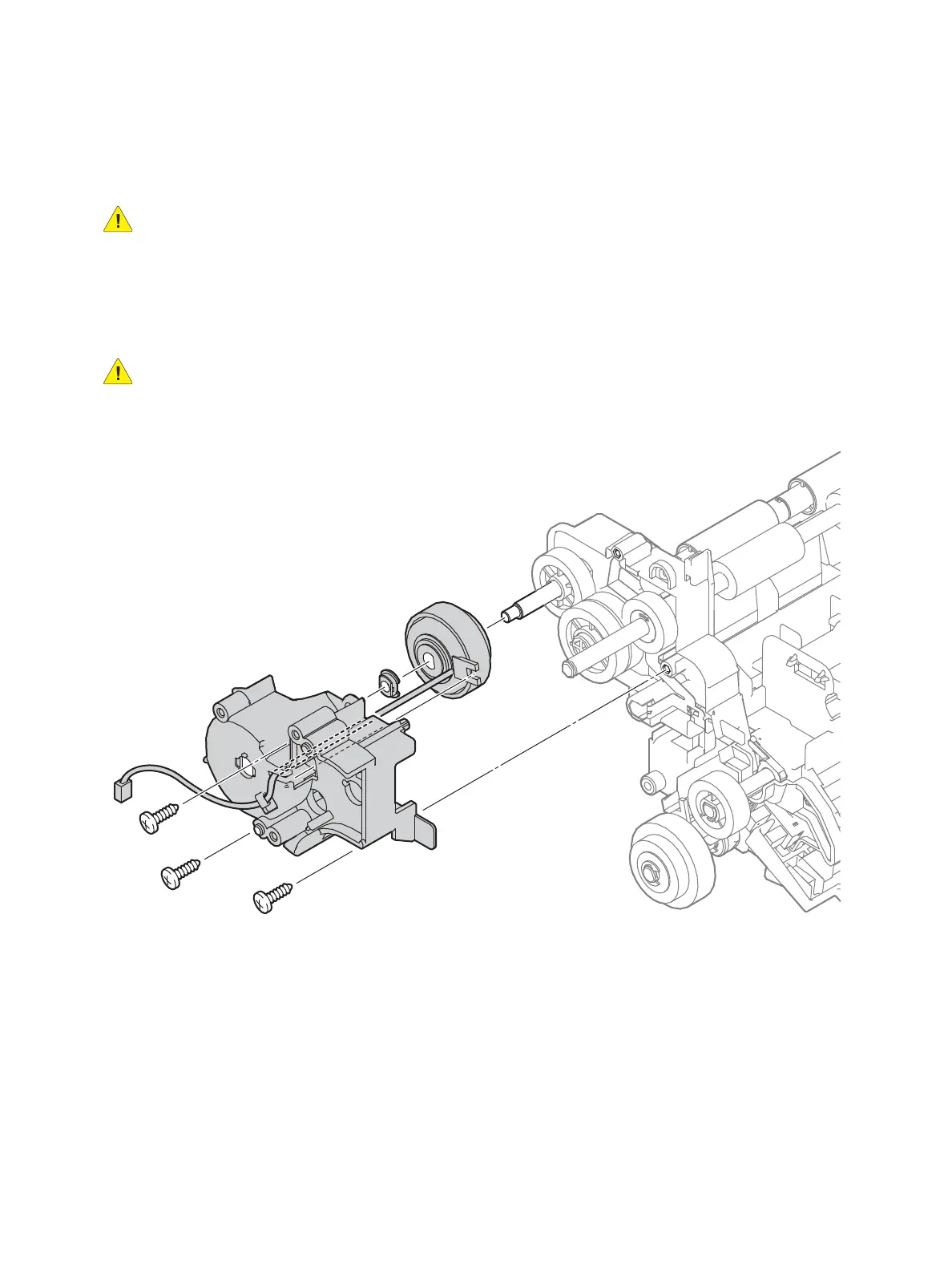

Duplex Clutch Assembly
PL15.2.5
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Right Regi Bearing. (page 4-89)
2. Release the harness from the harness guide of the Duplex Gear Cover (PL15.2.3).
3. Remove the three screws (silver, tapping, 8mm) that attach the Duplex Gear Cover to the printer
and remove the cover.
CAUTION: The gears and shafts of the Duplex Clutch Assembly easily fall off of the assembly.
Use care when removing to avoid losing or damaging any of the parts.
4. Remove the Duplex Clutch Assembly (PL15.2.5) from the shaft.
To Next Page
