Xerox WorkCentre 6605 Service Manual

Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
A-6

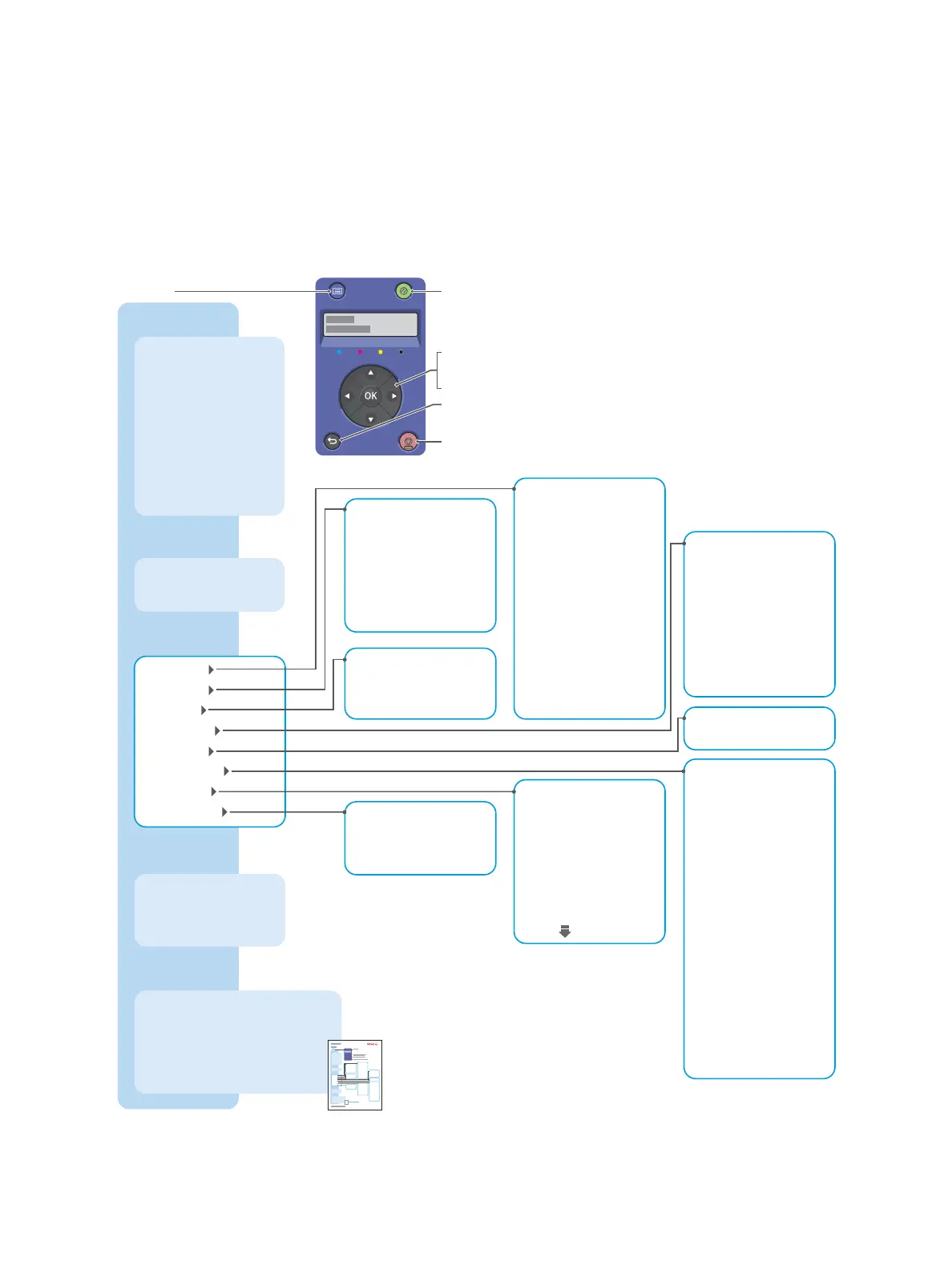

Phaser 6600 Menu Map
Arrow buttons scroll up, down, forward, and back through the menus. Press the left
arrow to display the Walk-Up Features menu and list Secure Jobs and Saved Jobs.
OK button accepts the menu selection.
Back/Return button goes up one level in the menu.
Cancel button cancels printing jobs.
Power Saver On/Off
Menu
Menus
Information Pages
Menu Map
Configuration
PCL Fonts List
PCL Macros List
PS Fonts List
PDF Fonts List
Job History
Error History
Print Meter
Demo Page
Stored Documents
Admin Settings
PCL Settings
PDF Settings
PS Settings
Network Setup
USB Settings
System Settings
Service Tools
Secure Settings
Tray Settings
Bypass Tray
Tray 1
Tray 2*
Tray Priority
Paper Tray
Paper Size
Orientation
2-Sided**
Font
Symbol Set
Font Size
Font Pitch
Form Line
Quantity
Image Enhance
Hex Dump
Line Termination
Default Color
Ignore Form Feed
F/W Version
Auto Regi Adj
Color Reg Adj
Reset Defaults
Init Print Meter
Reset Trans Unit
Clear Job History
Clear Storage*
Format HDD*
More...
Panel Lock
Data Encryption
HDD Overwrite*
Login Error
Energy Saver
Panel Timeout
Fault Timeout
Job Timeout
Clock Settings
Audio Tones
mm / inch
Default Size
Auto Log Print
2-Sided Report**
Print ID
Print Text
Banner Page
RAM Disk*
Size Mismatch
Startup Page
LetterH Dup Mode**
Low Toner Msg
S/W Download
Power On Wizard
Quantity
2-Sided Print**
Print Mode
PDF Password
Collated
Output Size
Layout
Output Color
Ethernet
Wi-Fi Status*
Wi-Fi Setup*
WPS Setup*
Reset Wi-Fi*
TCP/IP
Protocols
Host Access List
Reset Defaults
Adobe Protocol
PS Error Report
PS Job Timeout
PaperSelect Mode
Default Color
USB Port
Adobe Protocol
Billing Meters
Total Impression
Color Impression
Black Impression
Panel Language
www.xerox.com/office/6600docs
English
Français
Italiano
Deutsch
Español
Dansk
Nederlands
Português
Svenska

Magyar

Polski
Türkçe
Suomi
Norsk

Option
Phaser 6600DN
*
**
Xerox
®
Phaser
®
6600
Color Printer
© 2012 Xerox Corporation. All rights reserved. XEROX® and XEROX and Design®
are trademarks of Xerox Corporation in the United States and/or other countries.

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
