Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-126
SFP Left Sub-top Cover
PL19.1.10
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Right Cover Assembly. (page 4-131)
2. Remove the Left Cover Assembly. (page 4-134)

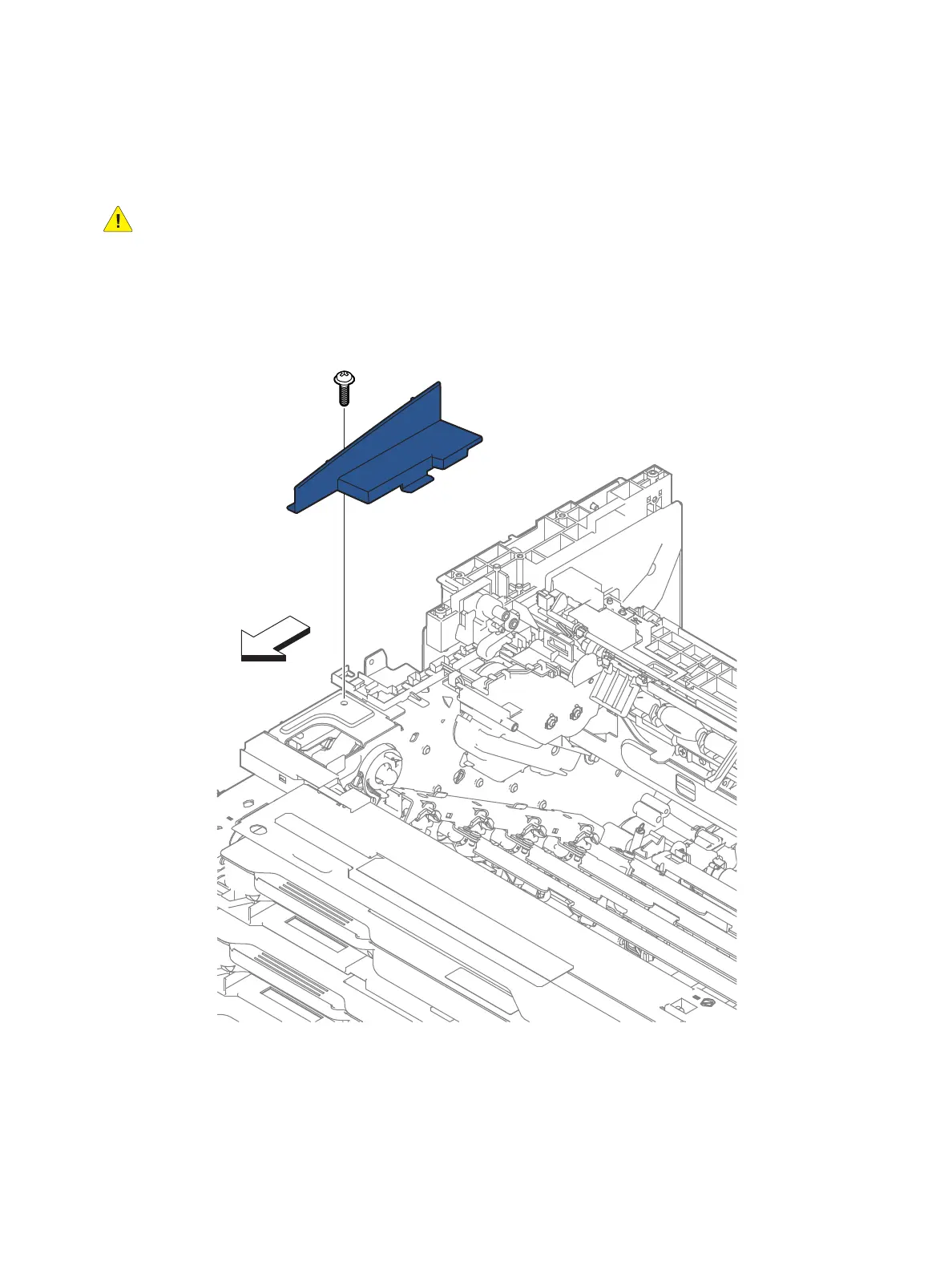

3. Remove the screw (6mm, silver) that attaches th]e Left Sub-Top Cover to the printer and remove
the cover.
