Xerox WorkCentre 6605 Service Manual

Parts Lists
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
5-14

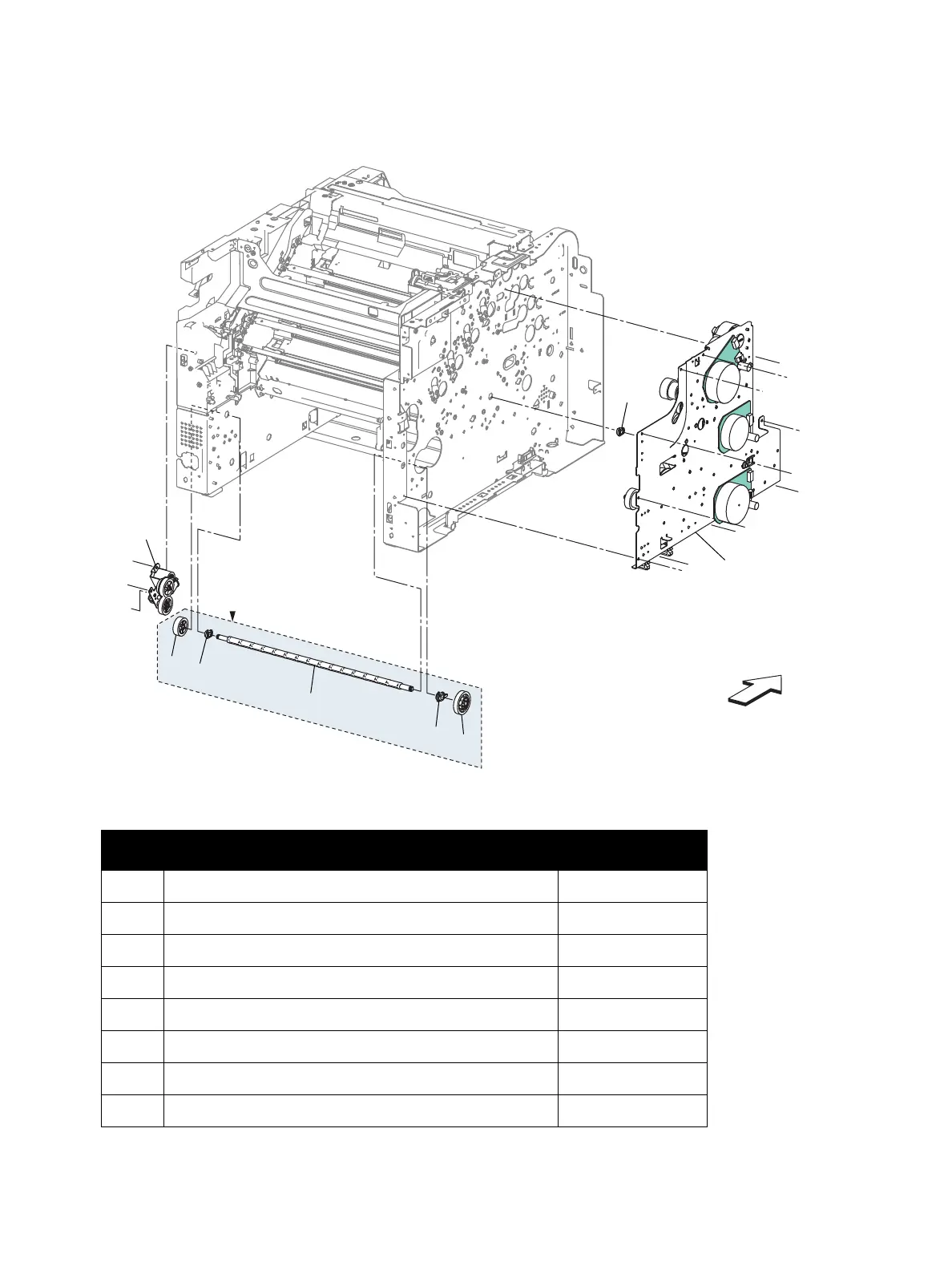

Parts List 3.1 Drive
Parts List 3.1 Drive
Item Name Part Number
1 Drive Assy Seg3 (Drive Assembly) 007K17954
2 Drive Assy Waste (Waste Drive Assembly) 007K17960
3 Gear Waste 2 (Waste Gear 2) —
4 Bearing Waste 1(Waste Bearing 1) —
5 Shaft Idler Waste (Waste Idler Shaft) —
6 Bearing Waste 2 (Waste Bearing 2) —
7 Gear Waste 3 (Waste Gear 3) —
8 Kit Drive Shaft Assy (with3-7) (Drive Shaft Assembly Kit) 007K17970
s6600-035
Front
S
S
S
S
S
S
S
S
S
S
S
S
S
8 (with 3-7)
1
6
2
7
6
5
4
3
