NOHAD & Waste Toner Collection
The Main Fan (PL4.1.13) — Draws air from outside the machine, and prevents temperature rise inside
the machine.
Toner Full Sensor (PL4.1.17) — Detects when the Waste Cartridge is full.

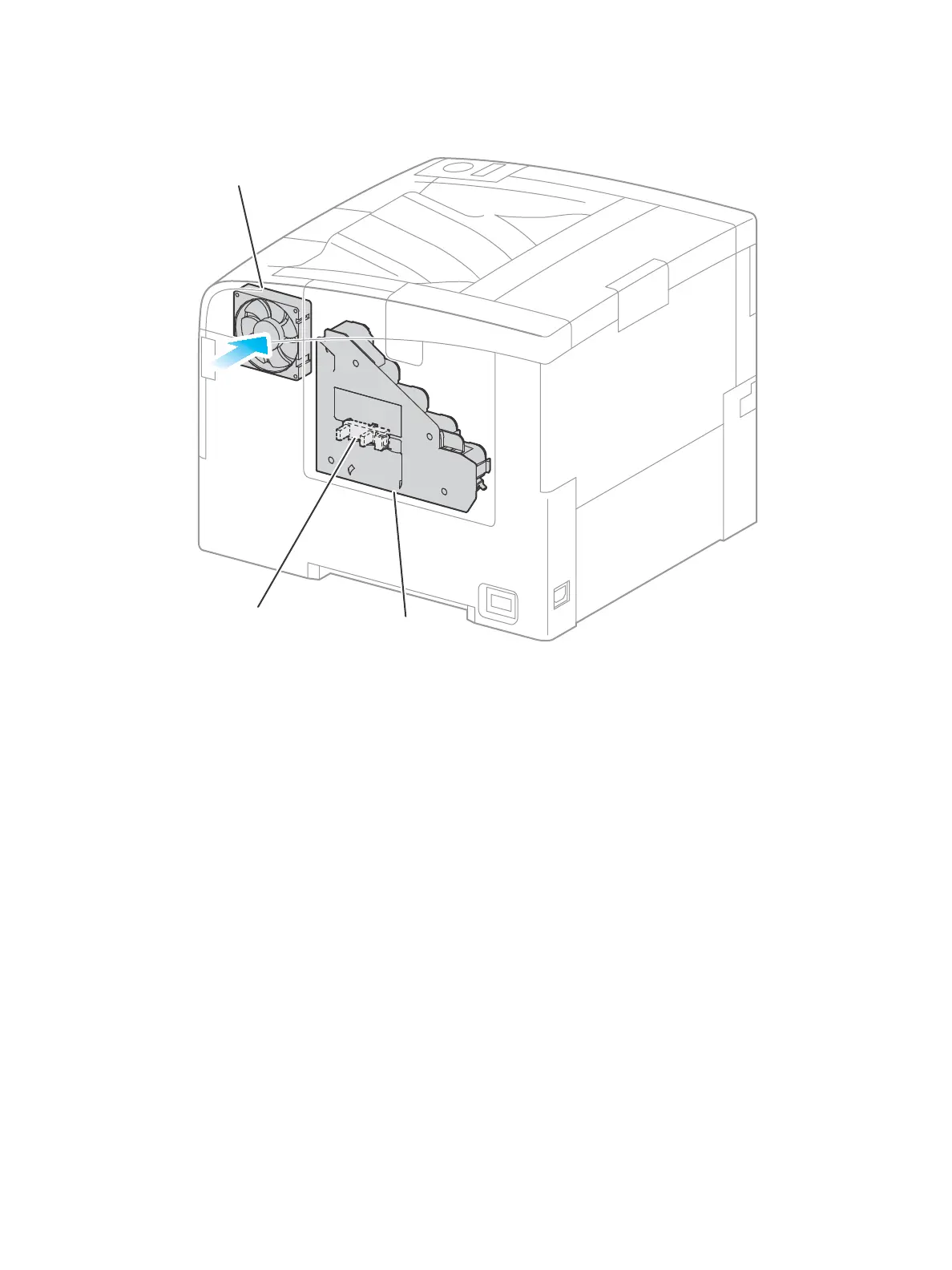

s6600-262
Main Fan
Toner Full Sensor
Waste Cartridge
