Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-21
Waste Drive Assembly
PL3.1.2
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Right Cover Assembly. (page 4-131)
2. Release the harness from the clamp installed on the Waste Drive Assembly.

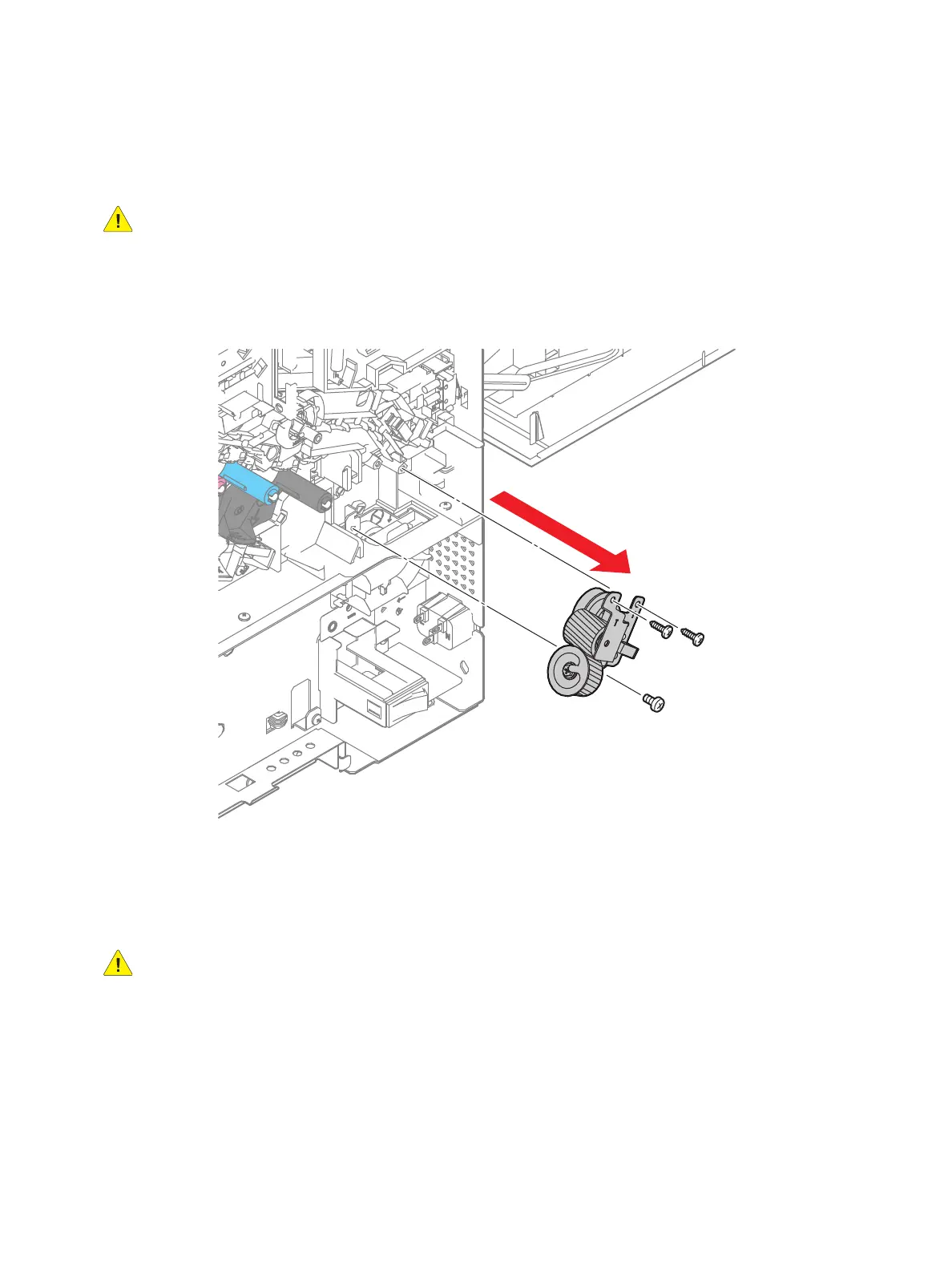

3. Remove two screws (silver, tapping, 8mm) and one screw (silver, 6mm) that attaches the Waste
Drive Assembly to the printer and remove the Waste Drive Assembly.
Drive Shaft Assembly
PL3.1.8
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Drive Assembly. (SFP page 4-11; MFP page 4-16)
2. Remove the Duplex Chute Assembly Kit. (page 4-84)
