Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-20

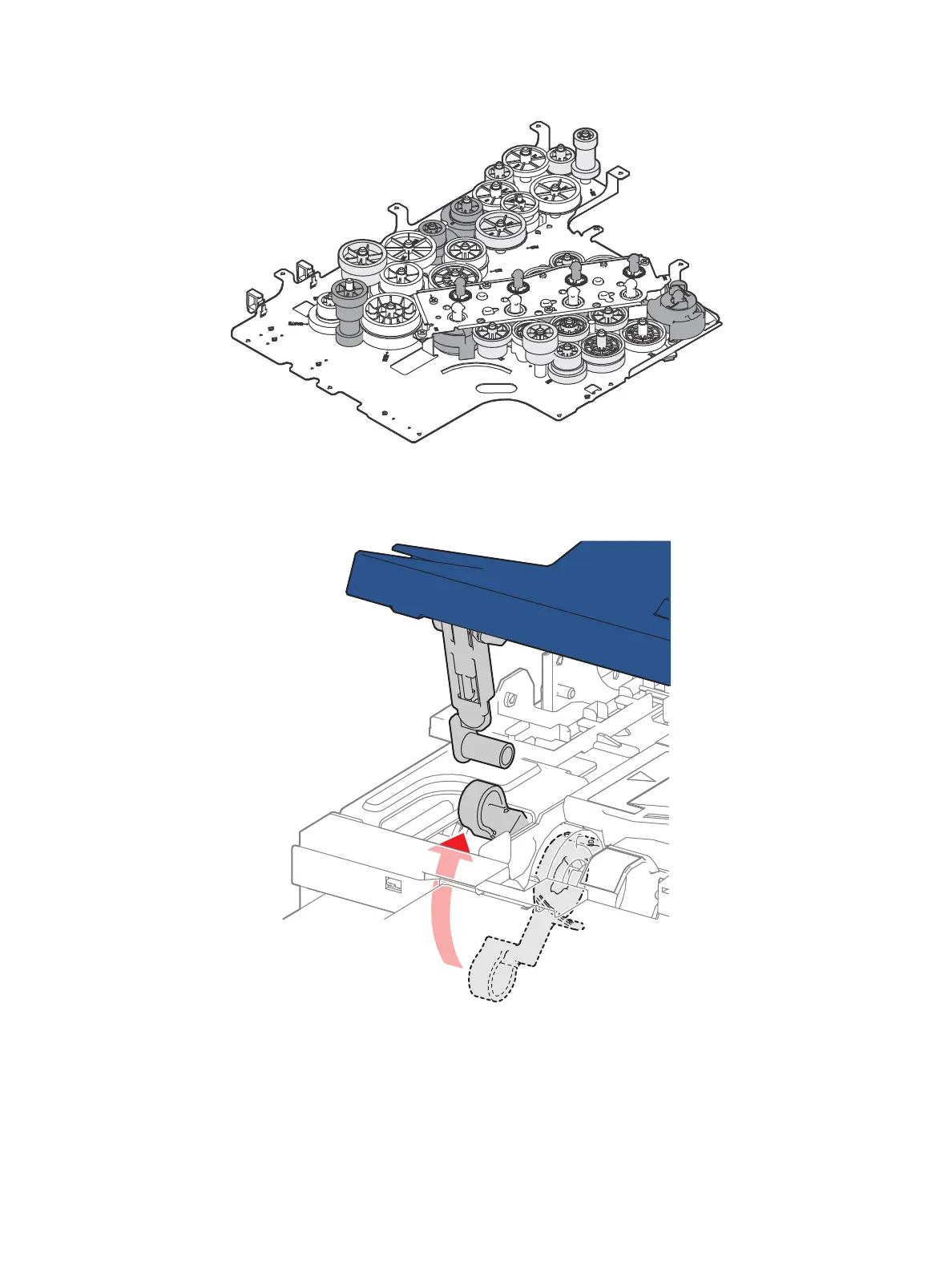

Replacement Note: When the installation hole of the Transfer 2 Link for the Transfer Link Coupling
is lowered, raise it by accessing the Transfer Link Coupling from inside the frame.
s6600-106
s6600-136
