Xerox WorkCentre 6605 Service Manual

General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-28
Feeding from Bypass Tray
When sheet feeding from the Bypass Tray starts, the Feed Roller rotates, driven by the Paper Transport
Motor and controlled by the Bypass Tray Feed Solenoid, to feed the sheet to the position where it is
nipped between the Feed Roller and the Retard Roller.
As the Feed Roller rotates, the Left and Right Bypass Tray Cams also rotate to lift the Bottom Plate
Assembly via the Left and Right Bypass Tray Arms to the position for sheet feeding.
Normally, when only one sheet is fed, both the Feed Roller and Retard Roller rotate to allow the sheet to
pass. However, when two sheets are fed concurrently, only the Feed Roller rotates and the Retard Roller
is locked thereby allowing the upper sheet to pass by being separated from the lower sheet that is
stopped by the friction with the Retard Roller at rest.
The Retard Roller is being pushed toward the Feed Roller by spring pressure, and controlled by the
torque limiter (Friction Clutch Assembly) with which it is coupled.

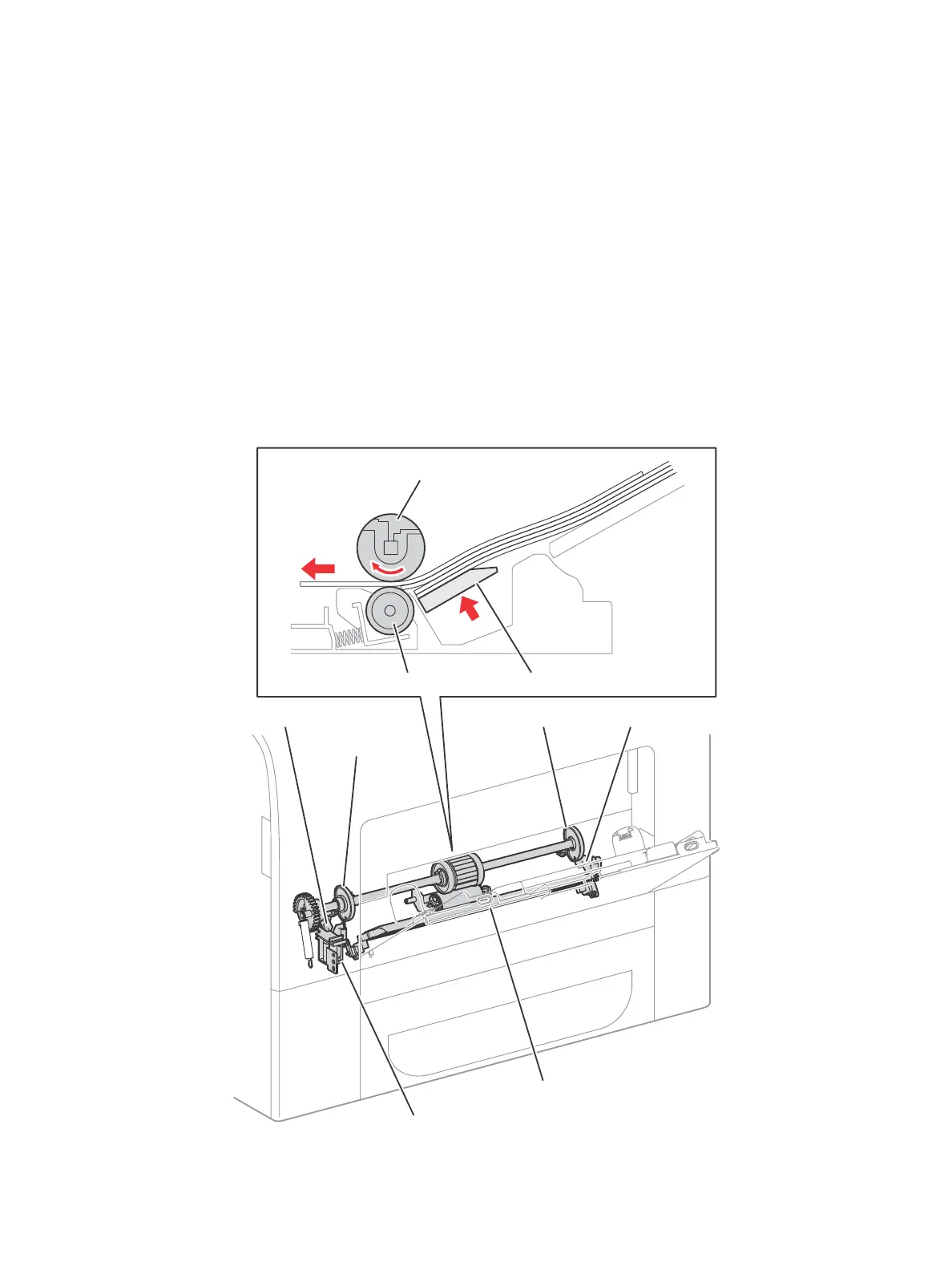

s6600-270
Bypass Tray Feed Solenoid
Bypass Tray L Cam
Bypass Tray L Arm Bypass Tray R Cam Bypass Tray R Arm
Bottom Plate Assembly
Feed Roller
Bottom Plate Assembly
Retard Roller

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
