Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-71
Bypass Tray Assembly
PL13.3.1
1. Remove the 550-sheet Paper Tray (PL9.1.1) from the printer.

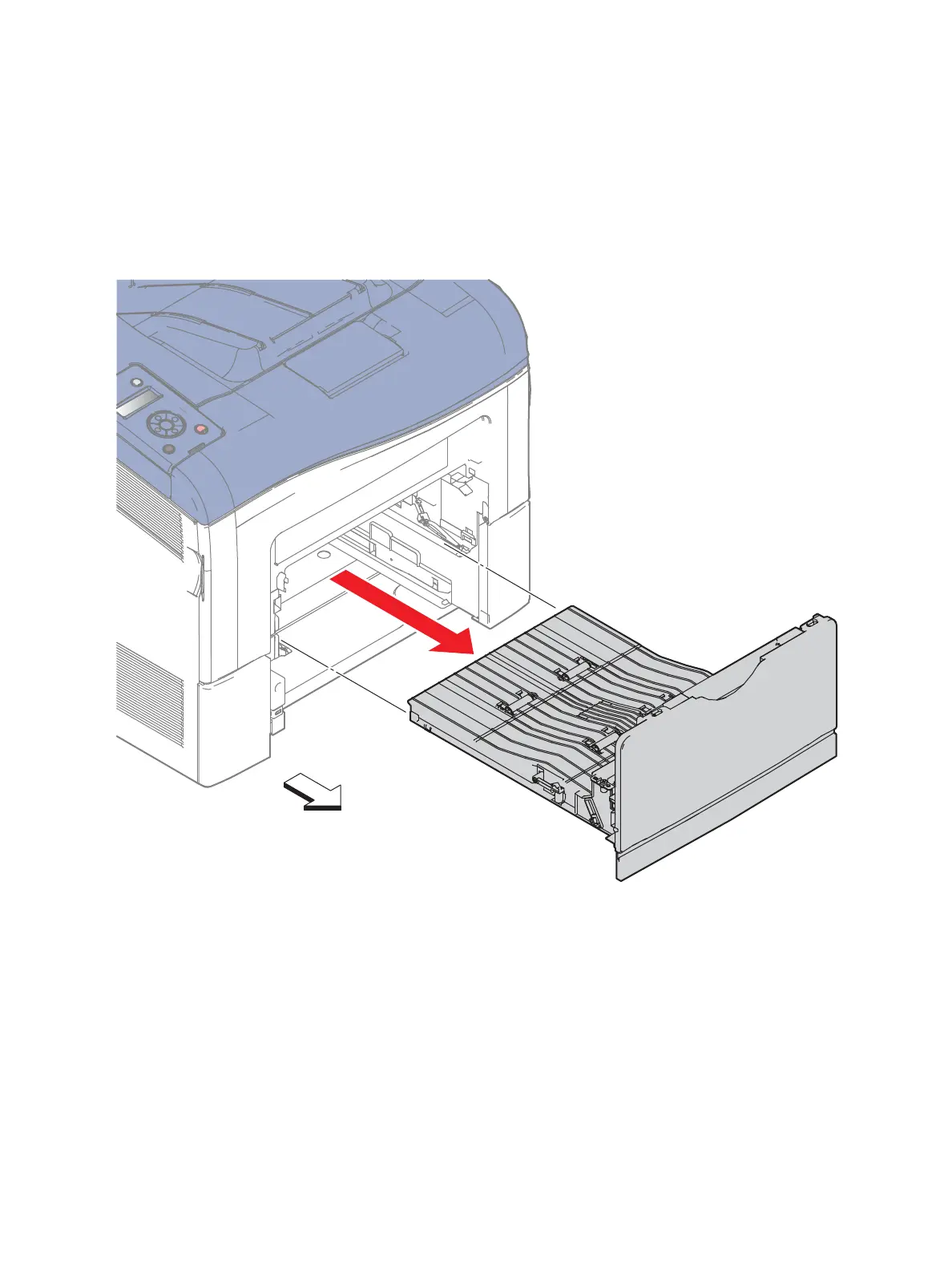

2. Pull the Bypass Tray Assembly (PL13.3.1) out toward you.
Note: The SFP is shown here, but the procedure is exactly the same for the MFP.
s6600-175
Front
