550 Option Cassette Stopper
PL10.1.6
1. Remove the Optional 550-Sheet Feeder from the printer. (page 4-53)
2. Remove the 550 Cassette Assembly from the Optional 550-Sheet Feeder.
3. Turn the Optional 550-Sheet Feeder over.

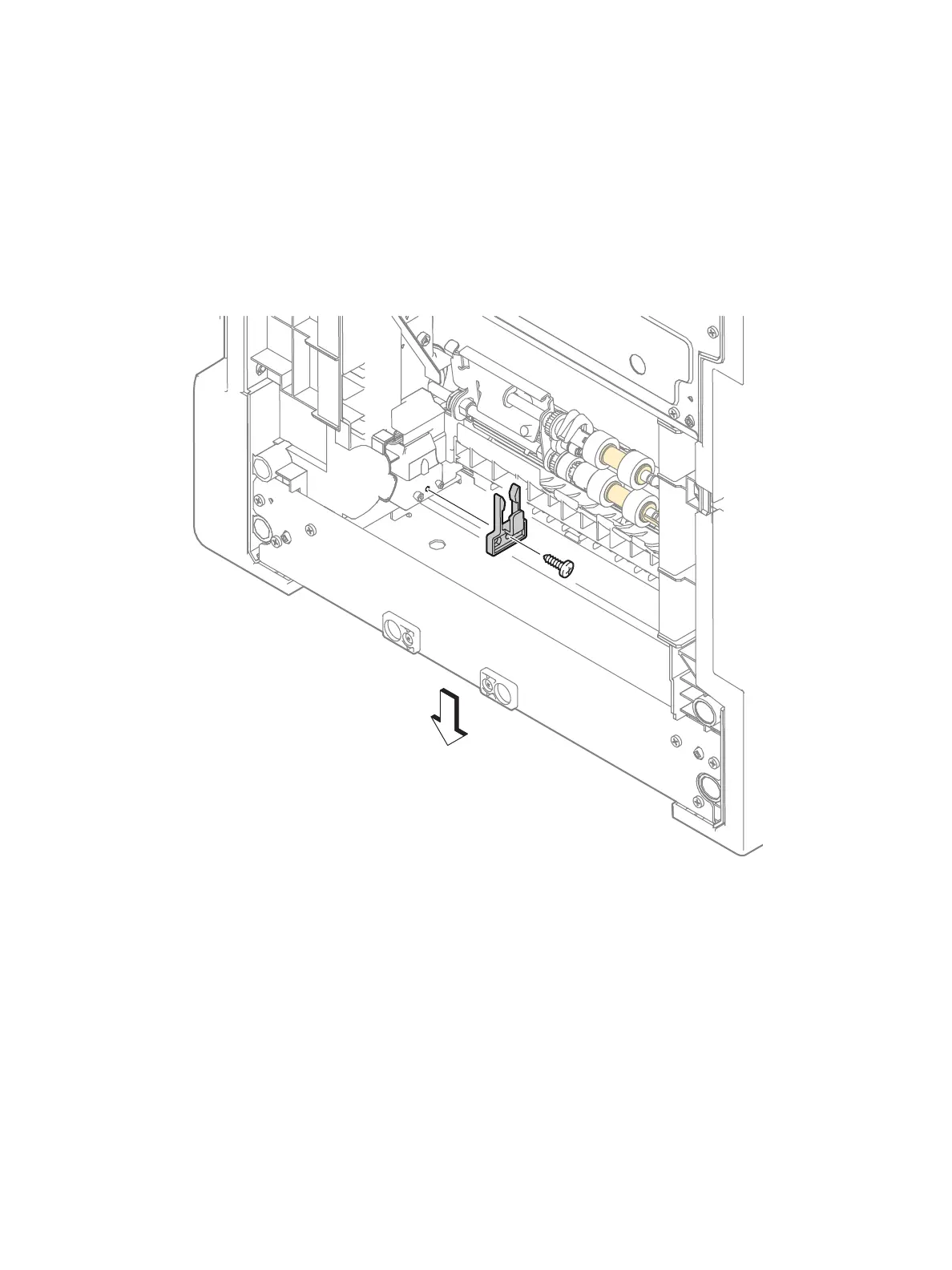

4. Remove the screw (silver, tapping, 8mm) that attaches the Cassette Stopper (PL10.1.6) to the
feeder and remove the stopper.
s6600-172
Rear
