Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-27
Dispenser
Upper Dispenser Motor Assembly
PL5.1.1
1. Remove the MCU Board. (page 4-98)
2. Remove the Development HVPS Board. (page 4-99)
3. Unplug connector P/J145 of the Front Door Open Sensor (Interlock Photo Sensor - PL18.1.45).
4. Release the harness from the clamp installed on the MCU Plate (PL18.1.12).

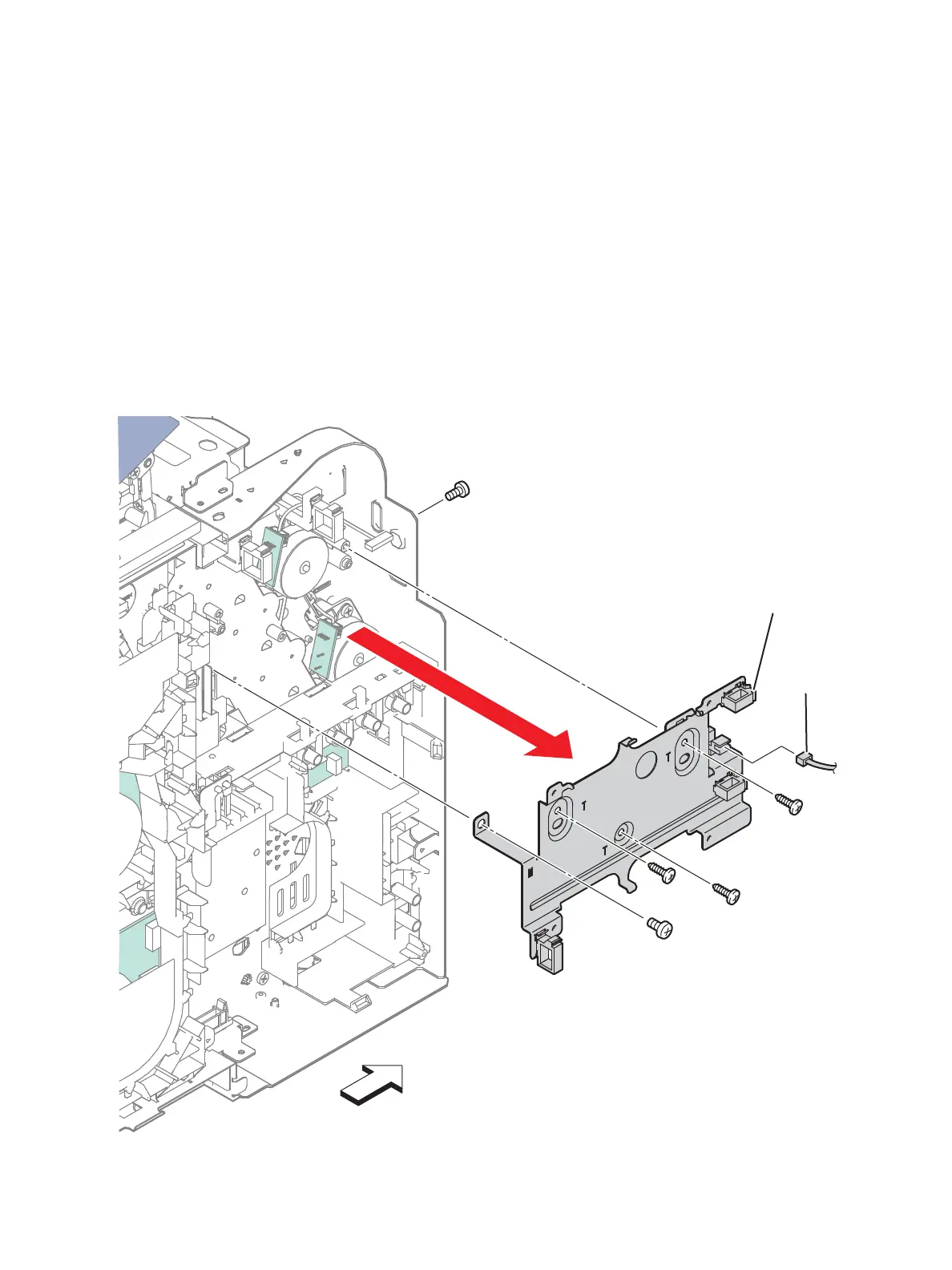

5. Remove three screws (silver, tapping, 8mm) and two screws (silver, 6mm) that attach the MCU
Plate to the printer and remove the plate.
s6600-062
Front
P/J145
Clamp
