Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-108
Transfer HVPS Board
(PL18.1.28)
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Fuser Assembly. (page 4-46)
2. Remove the Waste Cartridge. (page 4-50)
3. Remove the Waste Cartridge Lock. (page 4-39)
4. Remove the Front Door Assembly. (page 4-128)
5. Remove the Right Cover Assembly. (page 4-131)
6. Remove the Left Cover Assembly. (SFP page 4-134; MFP page 4-136)
7. MFP only: Remove the FAX Board. (page 4-97)
8. Remove the IP Board. (SFP page 4-102; MFP page 4-104)

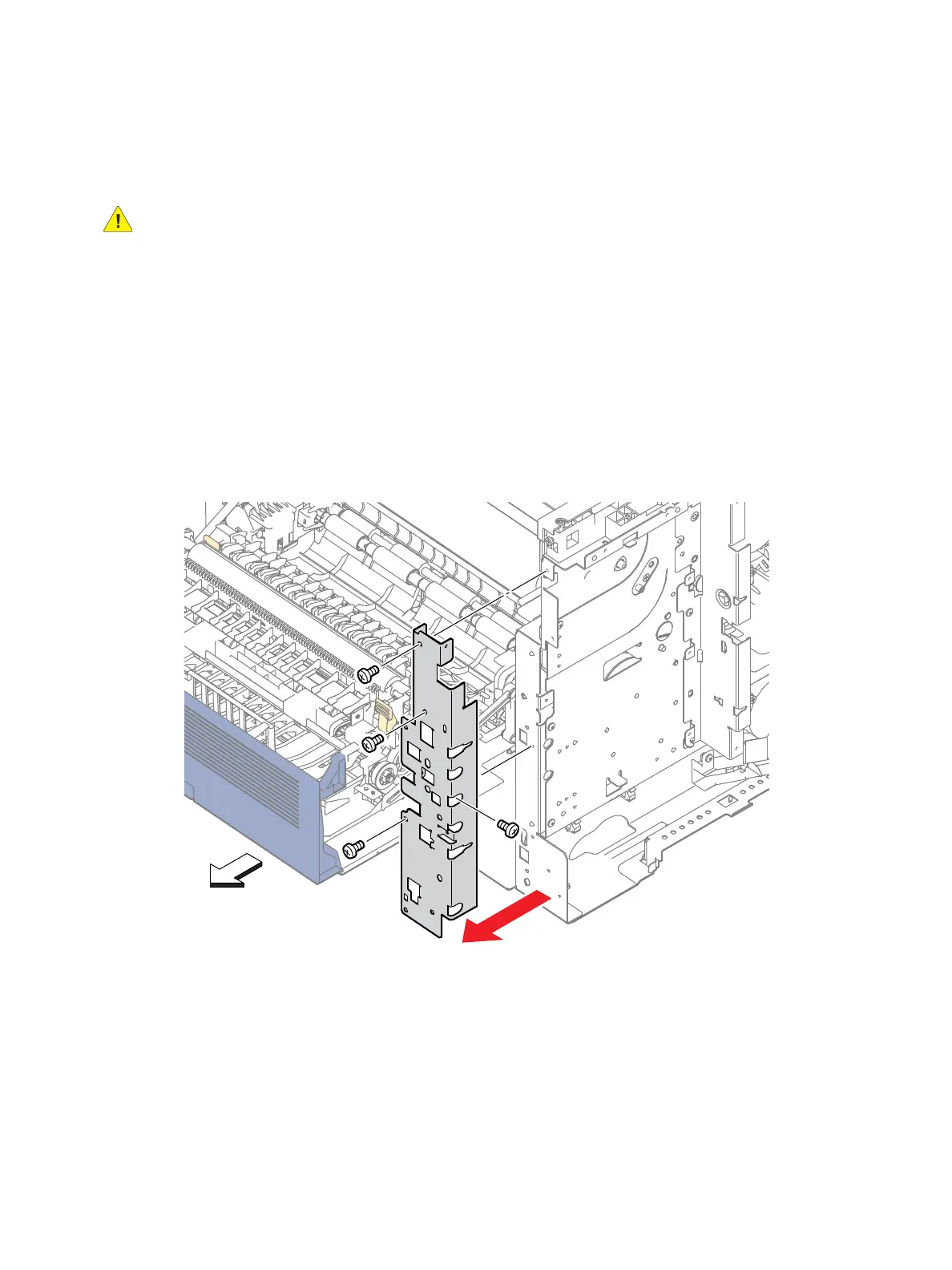

9. SFP only: Remove the four screws (silver, 6mm) that attach the Rear IP Board Plate (PL18.1.24) to
the printer and remove the plate.
s6600-192
Rear
