Xerox WorkCentre 6605 Service Manual

Wiring
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
7-35

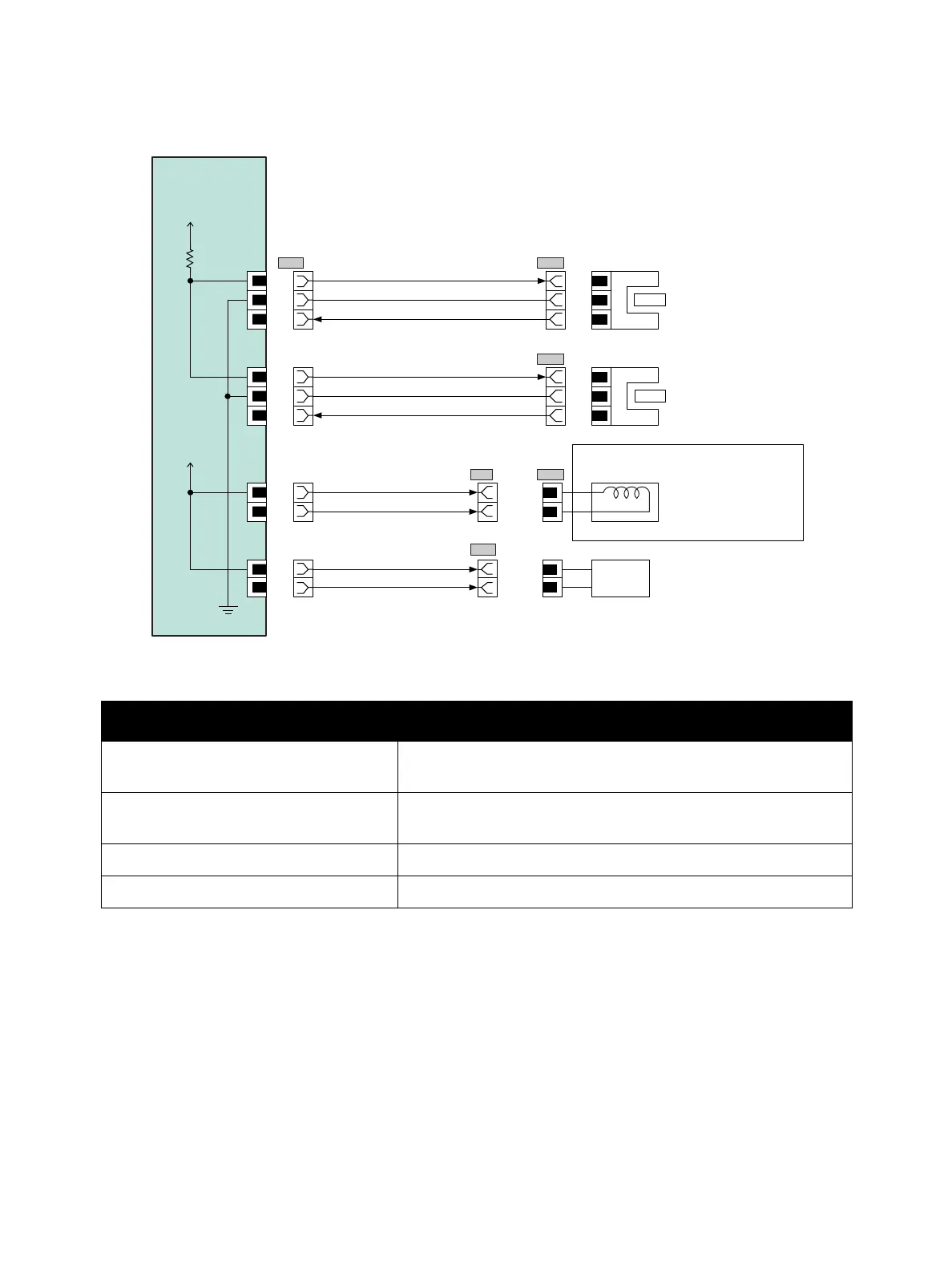

Bypass Tray (MSI)
Signal line name Description
PRE REGI SENSED SIGNAL Detect signal of paper in the Pre Registration section by the MSI
Sensor
MSI PAPER SENSED SIGNAL Detect signal of paper in the MSI section by the MSI No Paper
Sensor
TAKEAWAY CL ON ON/OFF signal of the Takeaway Clutch
MSI FEED SOLENOID ON ON/OFF signal of the MSI Feed Sorenoid
MCU Board
PL18.1.13
P/J21
1
2
+5VDC
SG
3
9
PRE REGI SENSED SIGNAL
I/L +24VDC
10
MSI FEED SOLENOID ON
P/J211
3
2
1
Bypass Tray No
Paper Sensor
PL13.2.4
Bypass Tray No
Paper Sensor
PL13.2.4
1
2
J214
2
1
Bypass Tray Feed
Solenoid
PL13.2.9
+5VDC
4
5
+5VDC
SG
6
MSI PAPER SENSED SIGNAL
P/J212
3
2
1
Takeaway
Clutch
7
8
I/L +24VDC
TAKEAWAY CL ON
I/L +24VDC
J213
2
P213
1
21
Drive Assembly
PL3.1.1
Bypass Tray Harness Assembly
PL13.2.5
s6600-223

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
