Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-89
Right Regi Bearing
PL15.2.2
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Regi Chute Assembly. (page 4-86)

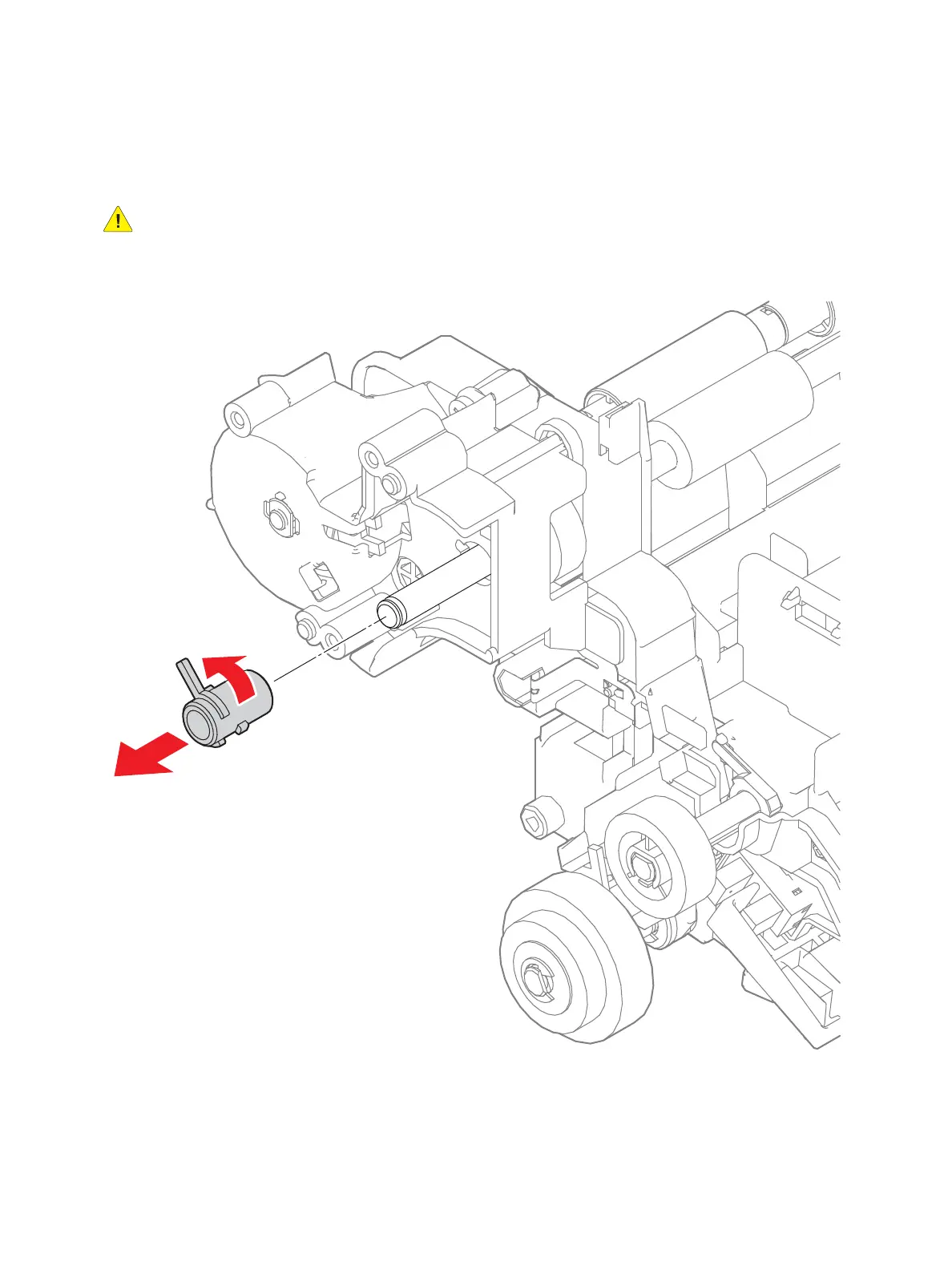

2. Unlock the Right Regi Bearing (PL15.2.2) by rotating it counterclockwise and remove it.
s6600-080
