Feeding to Registration Section
Paper is fed to the printer’s Registration section from either the Bypass Tray or from the paper
cassettes.
A sheet coming from the Bypass Tray is fed to the registration section by the Takeaway rollers, TA1,
TA2, and TA3, all driven by the Paper Transport Motor.
The sheet coming from the paper cassette passes through the chute directly and is fed to the
registration section.

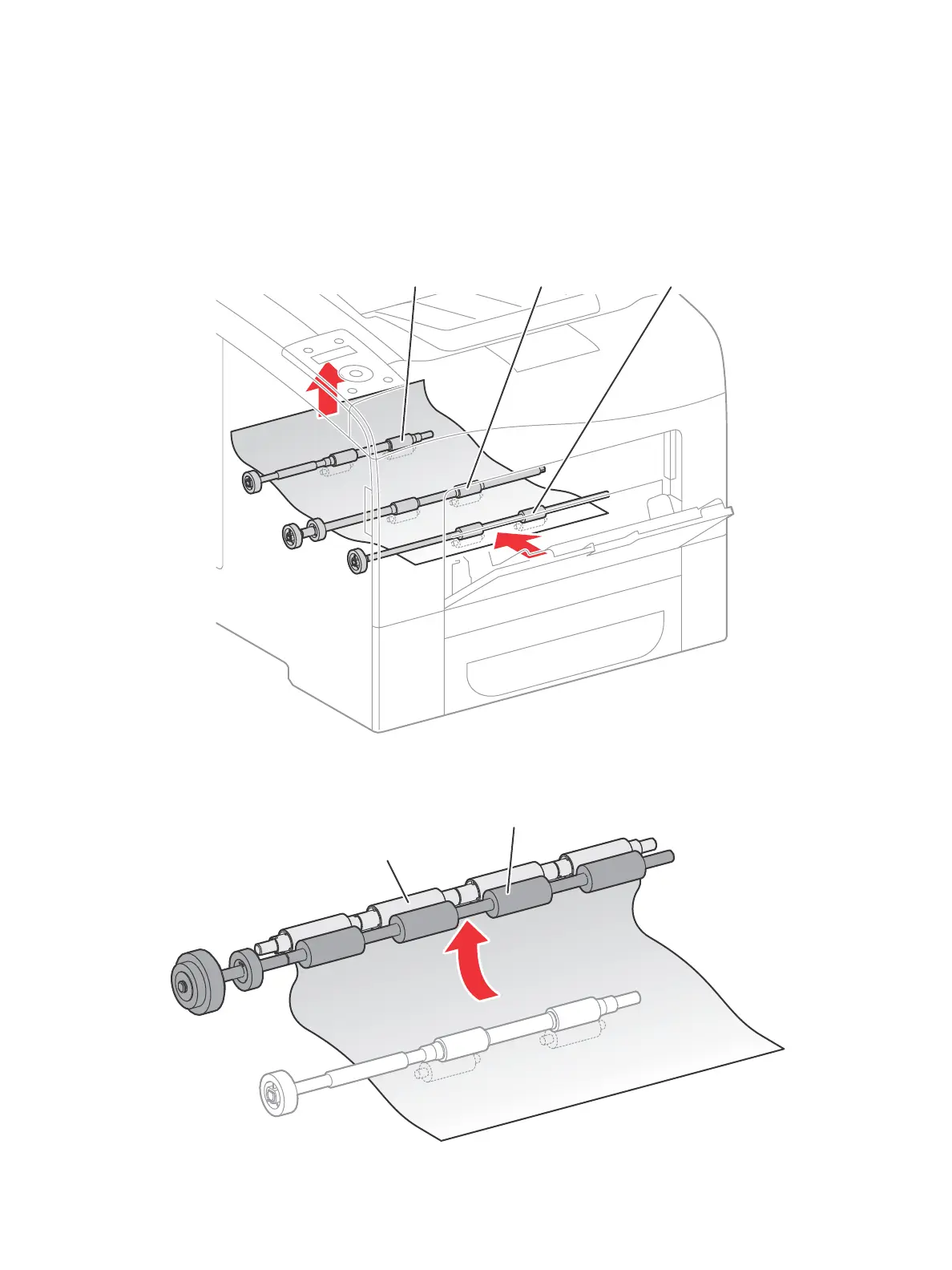

s6600-269
TA1 Roller AssemblyTA2 Roller AssemblyTA3 Roller Assembly
Metal Registration Roller
Rubber Registration Roller
