Xerox WorkCentre 6605 Service Manual

General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-30

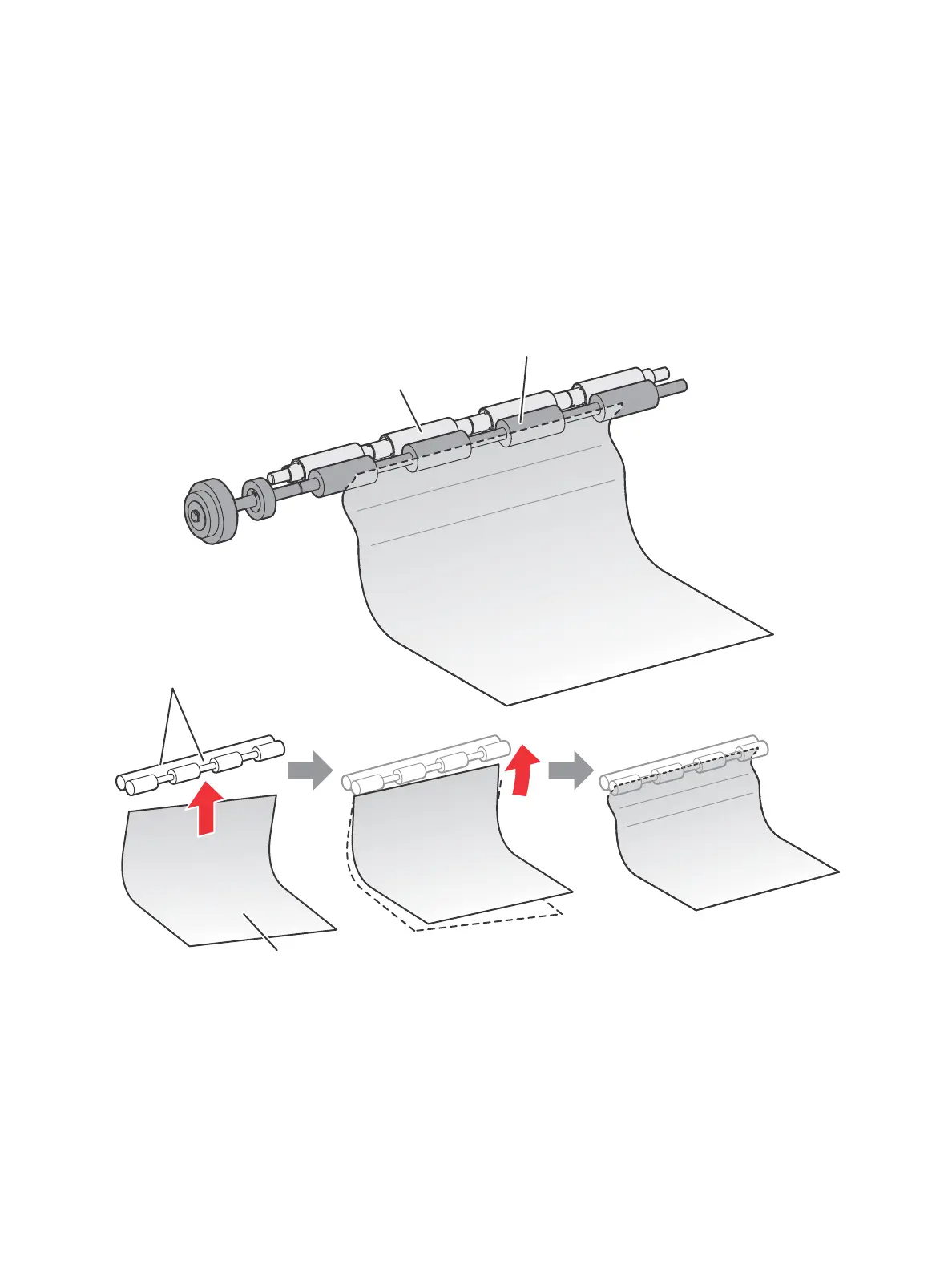

Lead-edge Registration
When a sheet fed out of the Bypass Tray or cassette directly reaches the toner transfer section, the
toner image may not be transferred at the correct position on the sheet due to misalignment of lead
edges in the Bypass Tray or Tray.
To avoid this problem, the lead edge position of the sheet needs to be corrected at the registration
section before the sheet is forwarded to the toner transfer section.
By thrusting the edge of the sheet fed out of the Bypass Tray or Tray against the Regi Roller that is
locked, the lead edge position of the sheet is corrected.
Feeding From Registration Section
The sheet is fed to the toner transfer section by the rotation of the Regi Roller at the proper timing,
after the lead edge position of the sheet fed is corrected in the registration section.
The Regi Roller is rotated by the drive from the Paper Transport Motor via the Regi Clutch.
s6600-267
Metal Registration Roller
Rubber Registration Roller
Registration Rollers
Skewed Paper

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
