Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-39

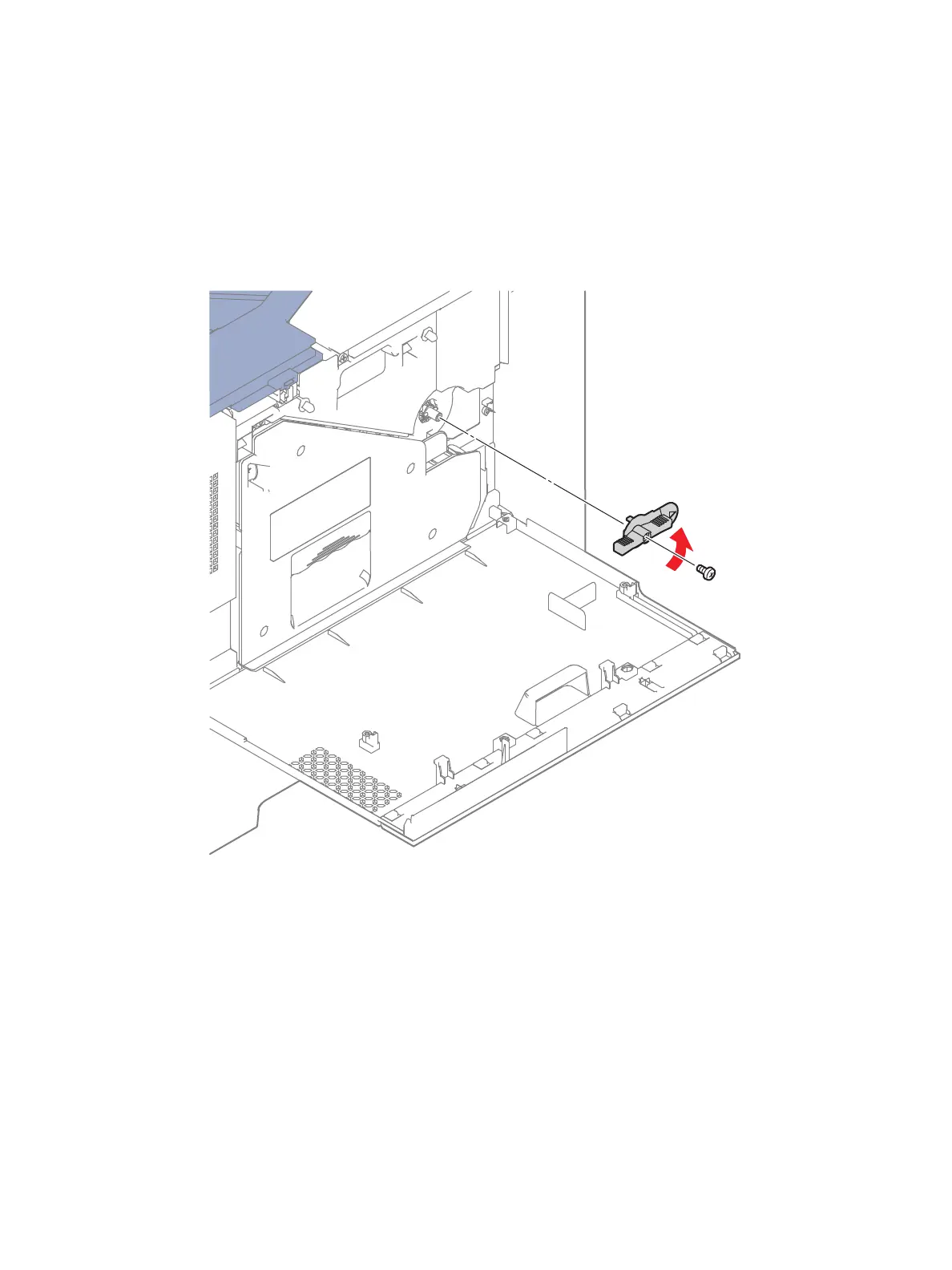

Waste Cartridge Lock
PL6.1.5
1. Open the Right Side Door (PL19.1.96).
2. Rotate the Waste Cartridge Lock (PL6.1.5) counterclockwise.
3. Remove the screw (silver, 6mm) that holds the Waste Cartridge Lock on the shaft and remove the
handle.
s6600-158
