Registration / Feeder
Upper Transfer Belt Chute Assembly
PL15.1.6
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Fuser Assembly. (page 4-46)
2. Remove the Transfer Belt Assembly. (page 4-38)

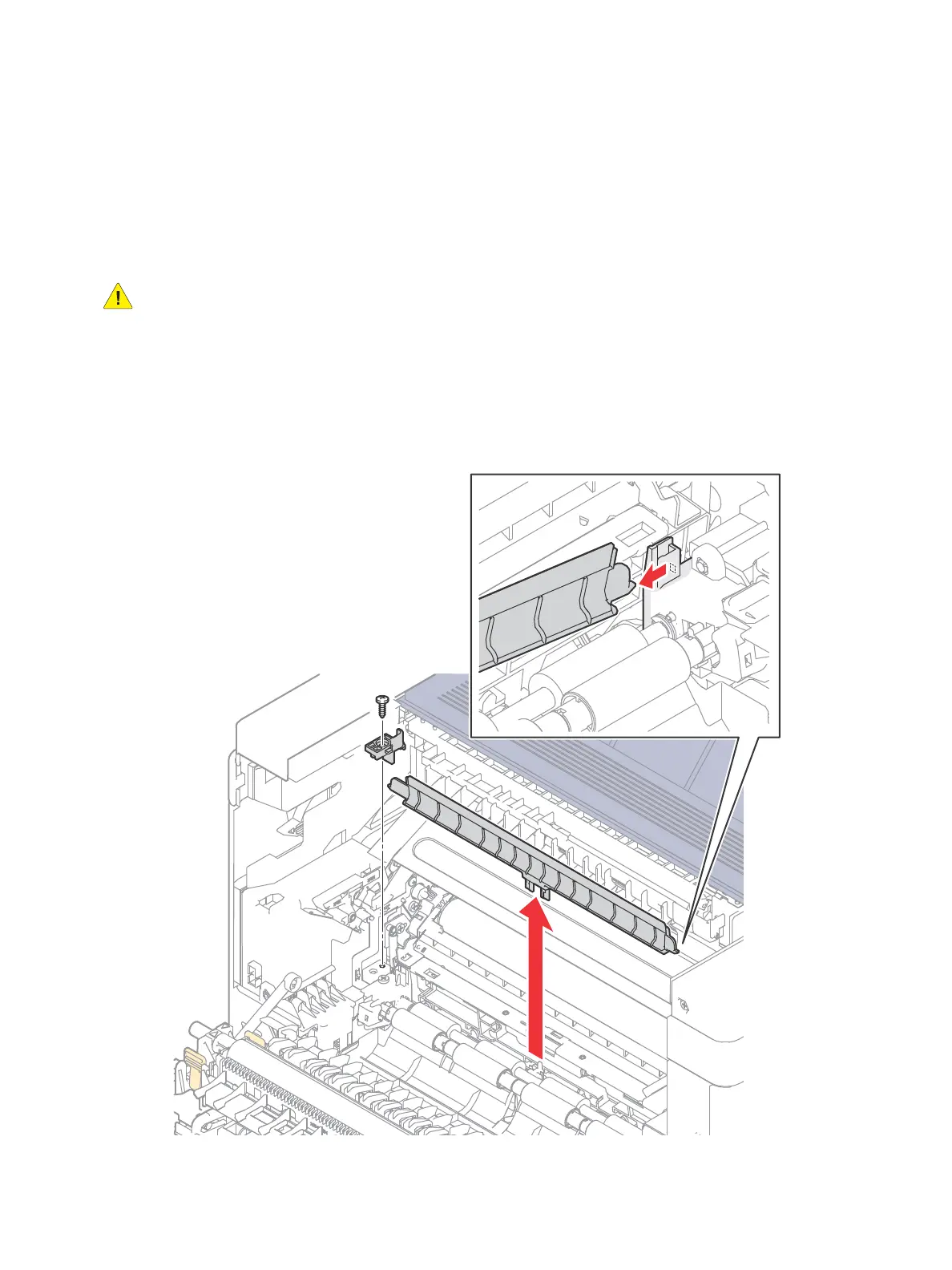

3. Remove the screw (silver, tapping, 8mm) that attaches the R CTD Guide (PL6.1.12) to the printer
and remove the guide.
4. Raise the right end of the Upper Transfer Belt Chute Assembly (PL15.1.6), release the hook on the
left from the hole and remove the Upper Transfer Belt Chute Assembly.
