Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-134
SFP Left Cover Assembly
PL19.1.98
1. Remove the Control Panel Assembly. (page 4-7)
2. Remove the Front Door Assembly. (page 4-128)

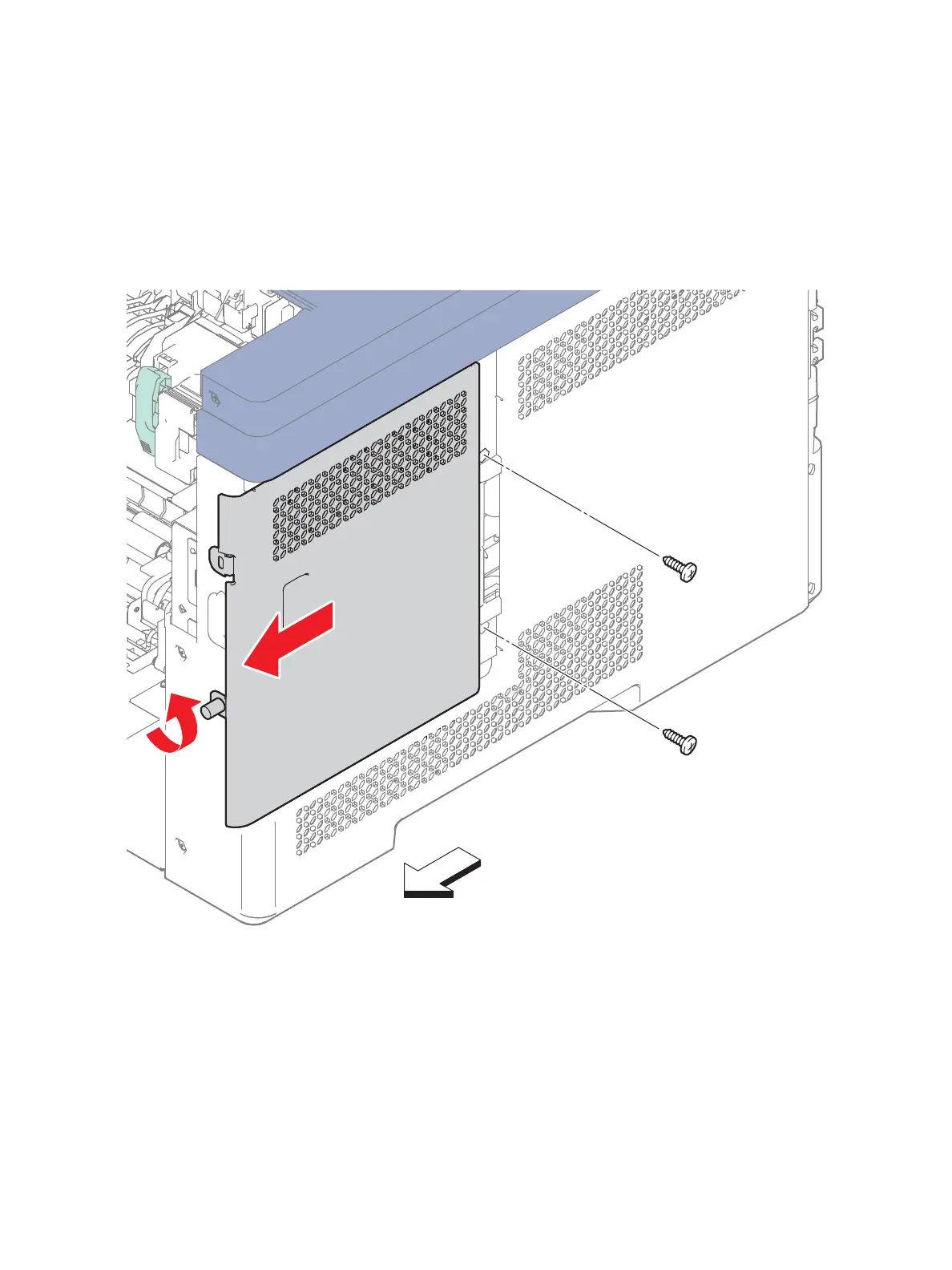

3. Loosen the knurled screw that secures the IP Board Cover (PL19.1.44), slide the cover rearward
and remove the two screws (silver, tapping, 8mm).
To Next Page
