Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-111

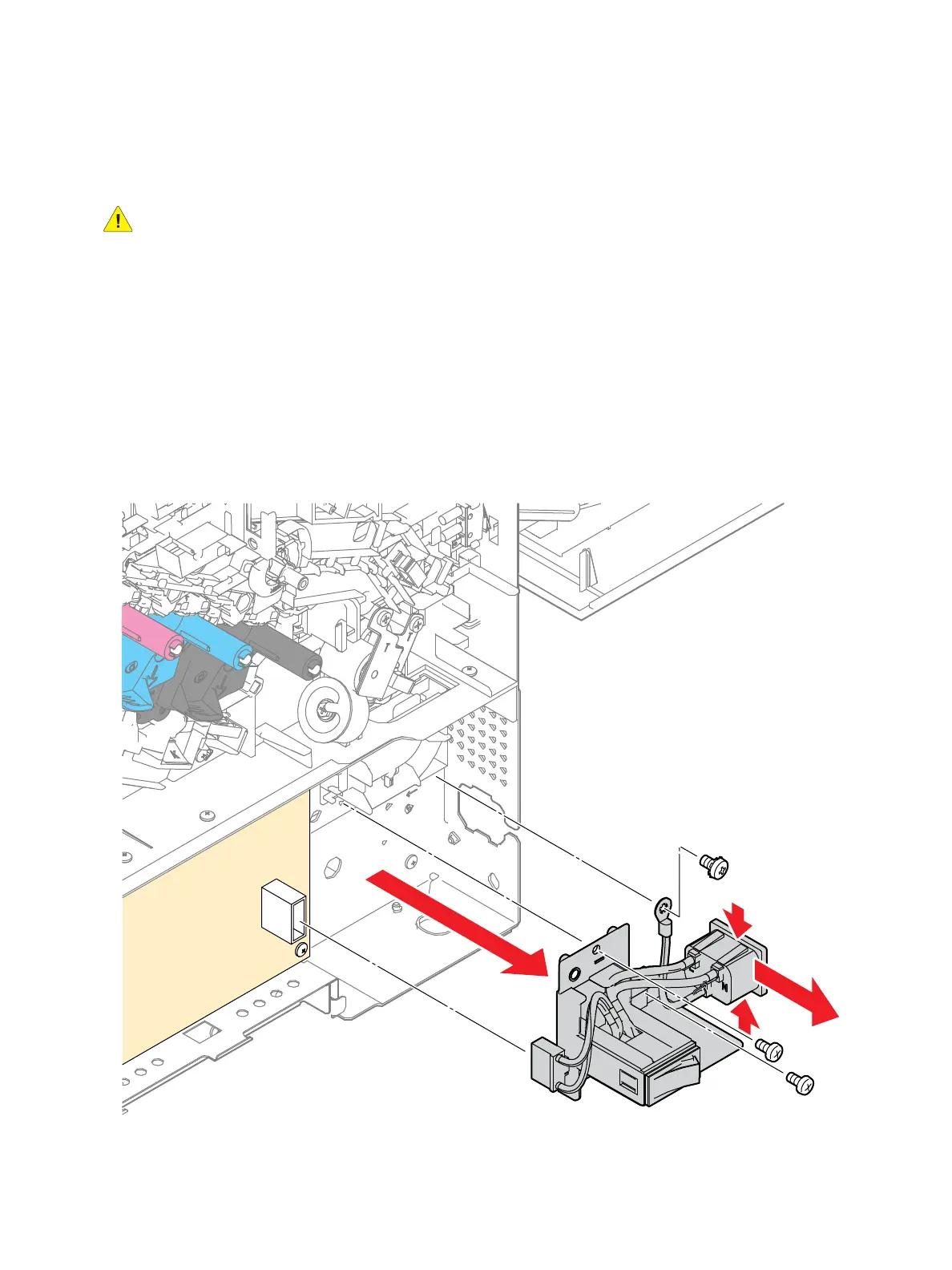

AC Inlet Assembly
PL18.1.31
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Fuser Assembly. (page 4-46)
2. Remove the Waste Cartridge. (page 4-50)
3. Remove the Waste Cartridge Lock. (page 4-39)
4. Remove the Front Door Assembly. (page 4-128)
5. Remove the Right Cover Assembly. (page 4-131)
6. Unplug connector P/J48 of the LVPS.
7. Remove the screw and the grounding wire.
8. Remove the two screws (silver, 6mm) that attach the Inlet Harness Guide to the printer and
remove the guide.
9. Release the two hooks holding the AC Inlet and remove the AC Inlet.
s6600-193
