Tray
Tray Retard Holder Assembly
PL9.1.3, PL10.3.3
1. Remove the 550 Cassette Assembly from the printer.

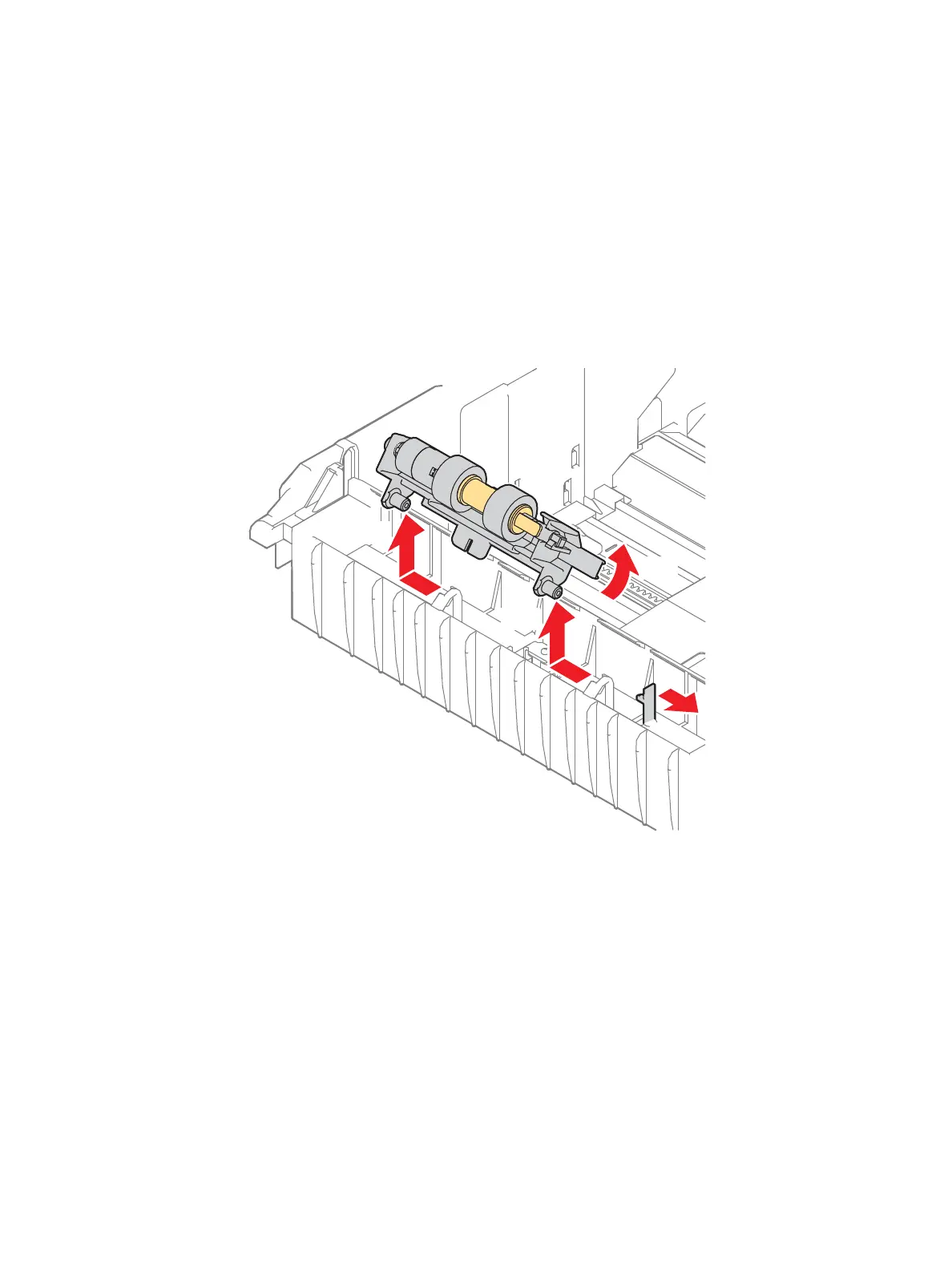

2. Release the hook on the rear of the Housing Base (PL9.1.25 or PL10.3.25) and remove the Tray
Retard Holder Assembly (PL9.1.3) (PL10.3.3) by swinging it upward and then by pulling it out
sideways.
s6600-168
